New product
VC10/18TESTD

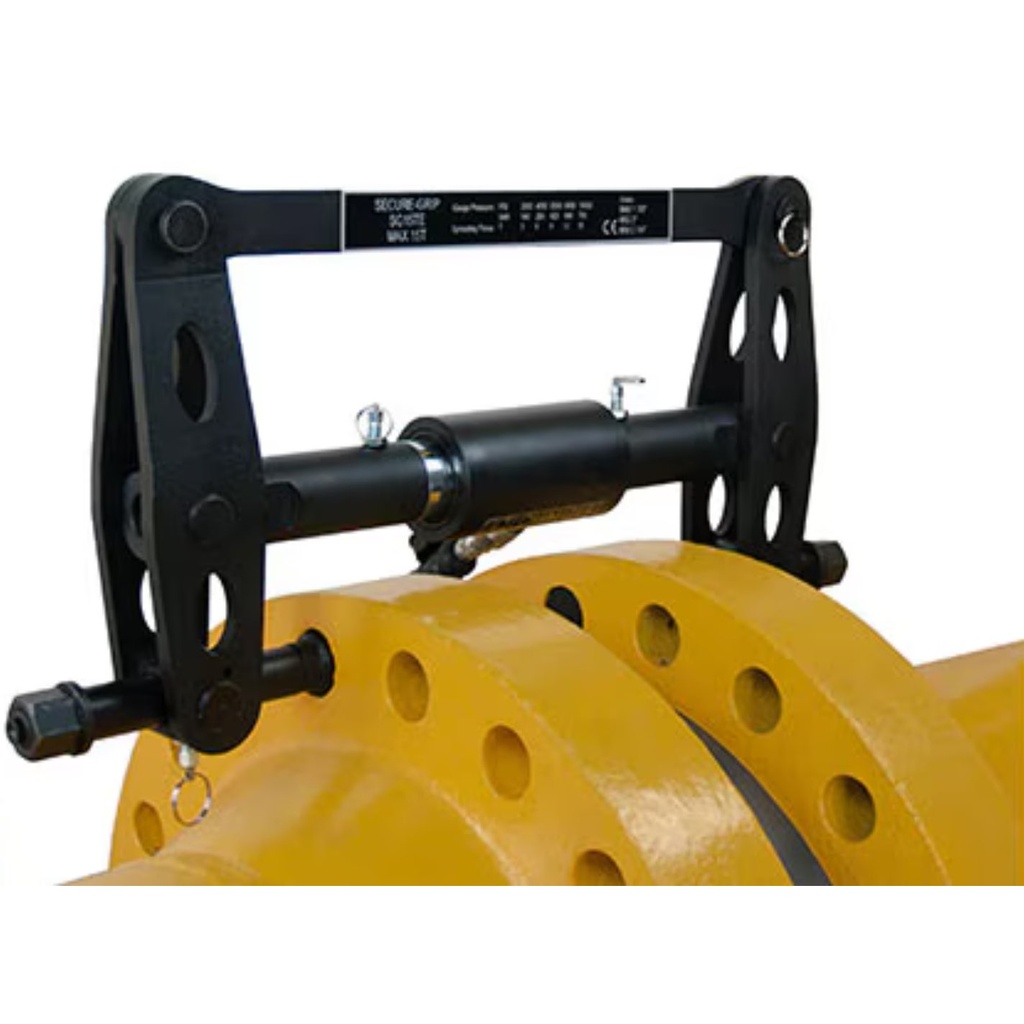

1ENERPAC 11.2 Ton Capacity, Flange Spread tool
Secure-Grip Valve Change-Out Standard Tool Set, 150mm Maximum Spread
SKU:
N/A
Category:
Founded in 1910 in Wisconsin (USA), ENERPAC has rapidly become the world’s leading manufacturer of high-pressure and ultra high-pressure hydraulic tools.
The brand encompasses several renowned sub-brands, including SIMPLEX, LARZEP, MIRAGE, EQUALIZER, Hydratight, and DTA
1. Order code: VC10/18TESTD
2. Description: 11.2 Ton Capacity, Secure-Grip Valve Change-Out Standard Tool Set, 150mm Maximum Spread
3. Technical Specifications
| Parameter | Value |
|---|---|
| Maximum Operating Pressure | 690 bar |
| Power Source | Hydraulic |
| Capacity | 10 metric tons (100 kN) |
| Stroke | 151 mm |
| Tip Clearance | 0 mm |
| Weight | 85 kg |
4. Product Dimension:
| Parameter | Value |
|---|---|
| Dimension A1, Minimum Axial Tool Space | 11.8" (300 mm) |
| Dimension A2, Minimum Axial Tool Space | 14.6" (370 mm) |
| Dimension C, Maximum Flange Clearance | 5.1" (130 mm) |
| Dimension F, Minimum Flange Joint Thickness | 6.9" (176 mm) |
| Dimension F, Maximum Flange Joint Thickness | 27.2" (690 mm) |
| Dimension R, Minimum Radial Space | 14.2" (360 mm) |
| Dimension V, Minimum Valve/Spacer Thickness | 0" (0 mm) |
| Dimension V, Maximum Valve/Spacer Thickness | 20.2" (514 mm) |
CATALOG DOWNLOAD- VC SERIES
