1. Order code: FSH14

  Series: FS  |  Product Line: Industrial Tools, Bolting Tools
2. Description:

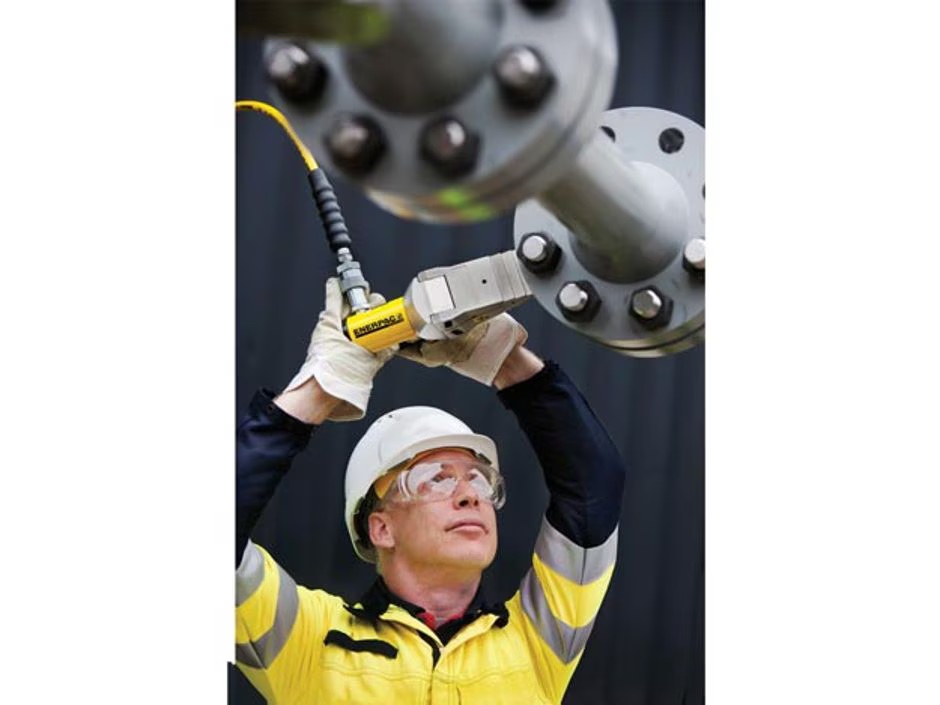

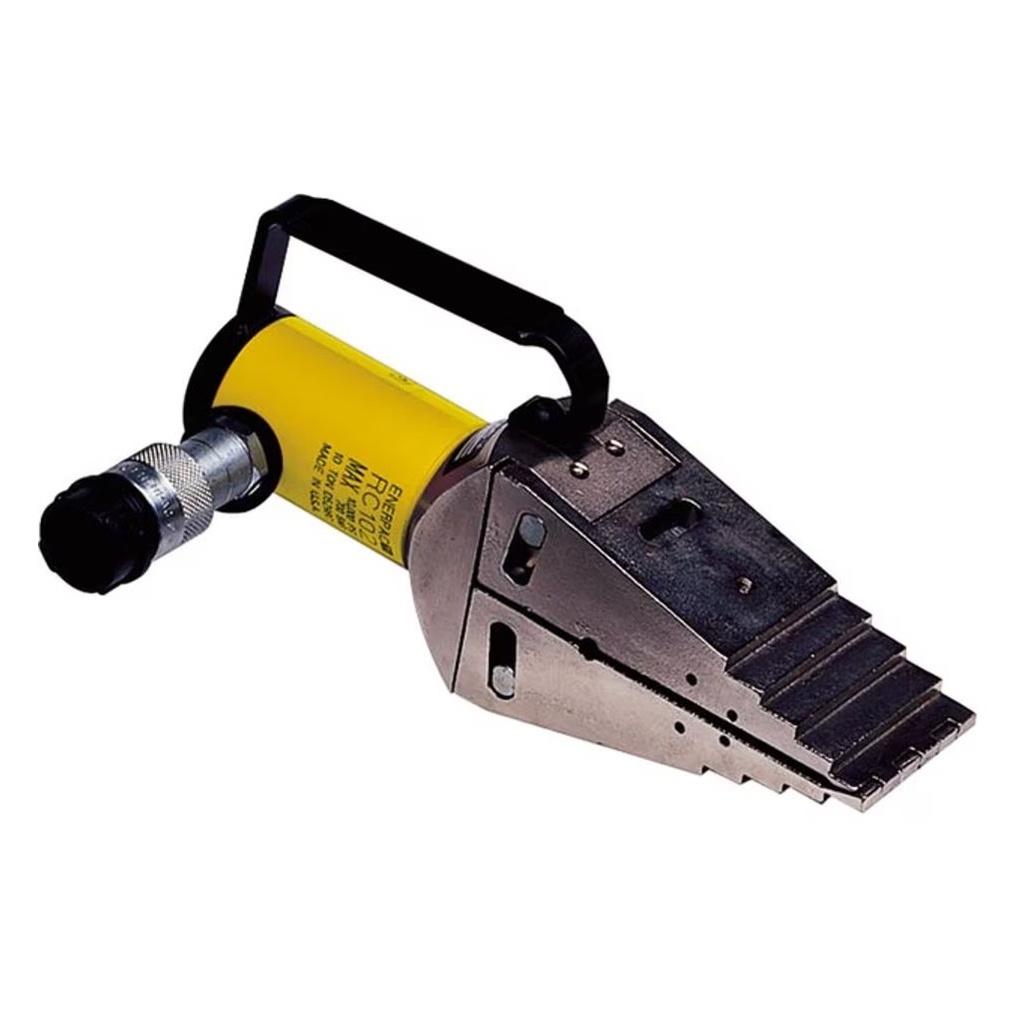

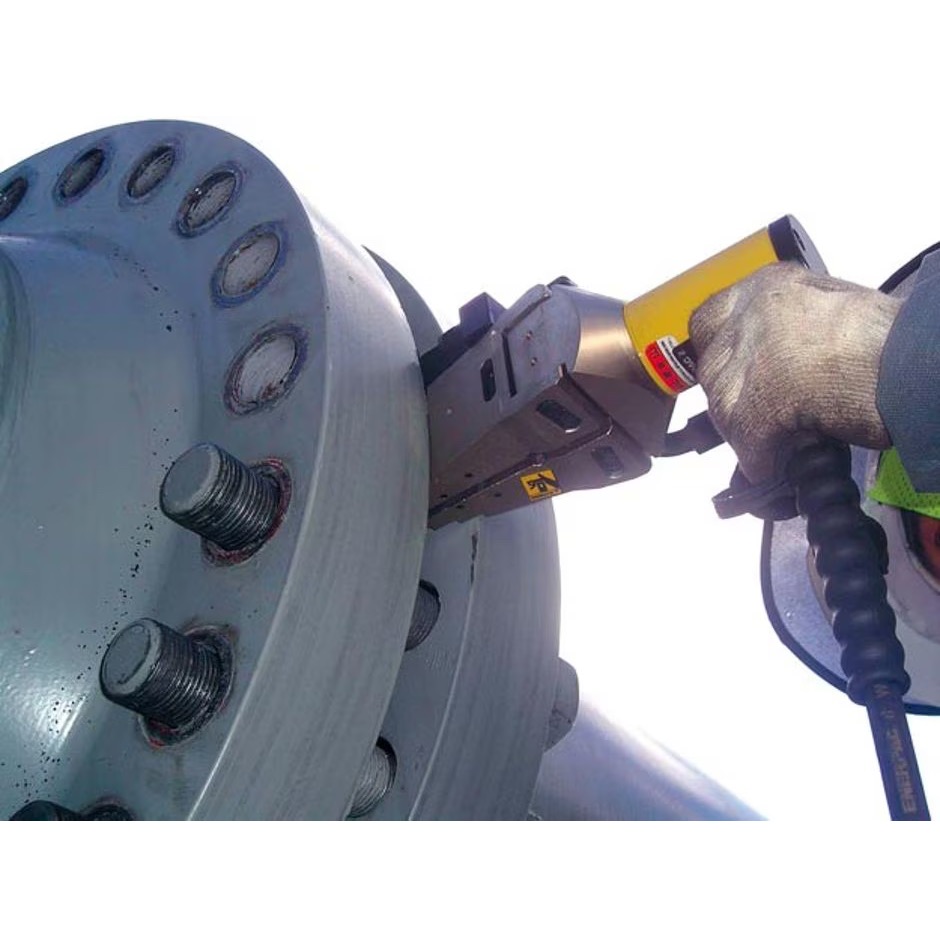

• The FSH14 Flange Spreader with its integral cylinder makes it easy to apply up to 14 tons of force (118 kN). It uses hydraulic force to separate the jaws - unlike mechanical equivalents (such as the FSM8) which rely on a ratchet mechanism.
  The FSH14 tool fits into very small clearance gaps of 0.24 inch (6 mm). It uses a friction-free, smooth, parallel wedge movement to prevent flange damage and spreading arm failure.
  • Integrated hydraulic cylinder: uses hydraulic force to open the jaws
  • Integrated wedge concept: friction-free, smooth, parallel wedge movement eliminates flange damage and spreading arm failure
  • Unique interlocking wedge design: no first step bending and risk of slipping out of joint
  • Requires very small access gap of only 0.24 inches (6mm)
  • Stepped spreader arm design: each step can spread under full load
  • Few moving parts means durability and low maintenance
  • Safety block SB1 included



3. Technical Specifications

The FSH14 Flange Spreader with its integral cylinder makes it easy to apply up to 14 tons of force (118 kN). It uses hydraulic force to separate the jaws - unlike mechanical equivalents (such as the FSM8) which rely on a ratchet mechanism.
