Brand:
ENERPAC
P802

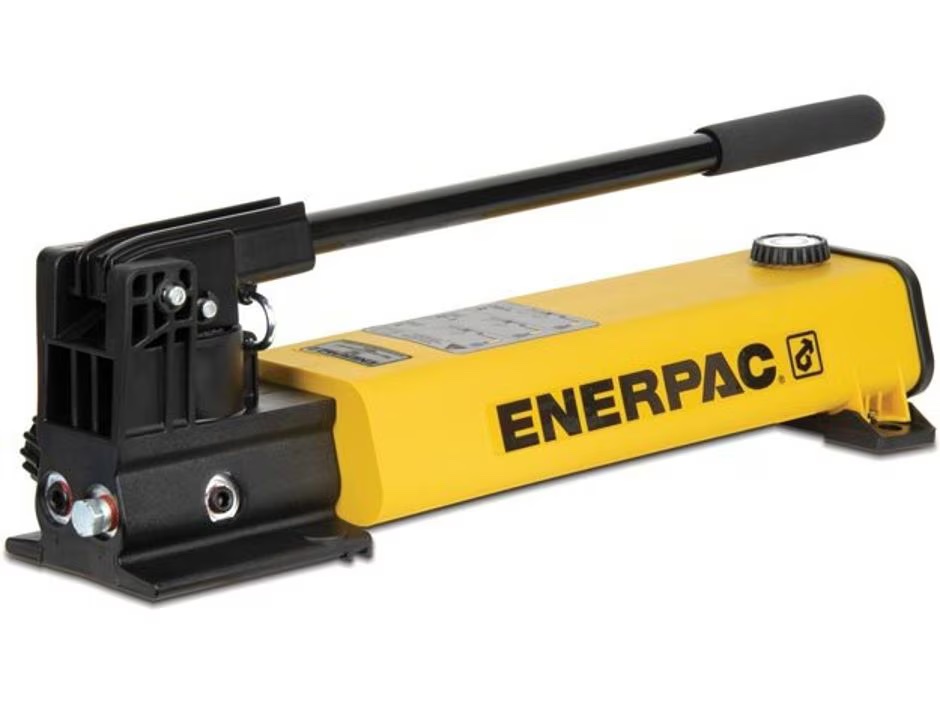

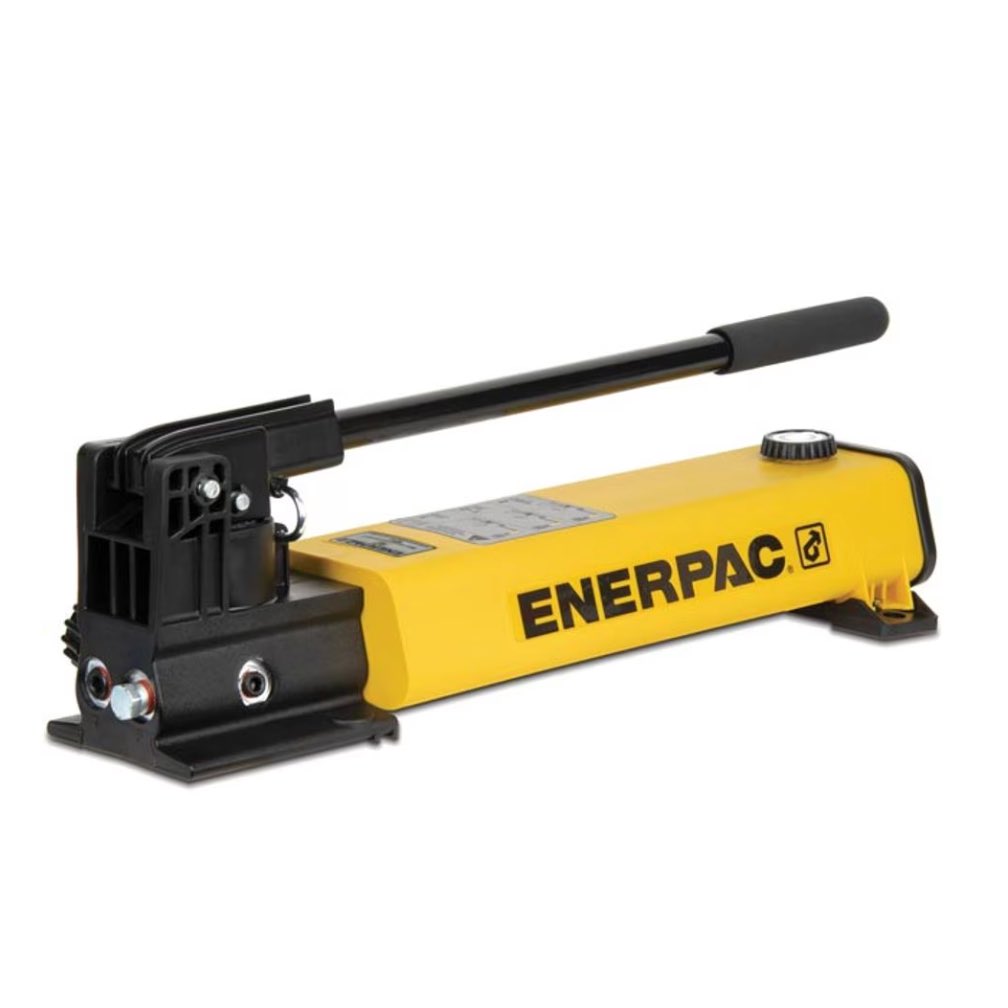

ENERPAC Hydraulic pump
(Hand Pump Light weight, Single Acting, Two Speed, 2.54 Lit Usable Oil)
Made in USA
B2B Project Supply & Genuine Technical Support
Request a Project Quotation & Technical Advice
This product belongs to our range of high-specification industrial equipment. Please contact the Davita technical team for detailed specifications, stock availability and our best project pricing.
100% Genuine (CO/CQ)
Manufacturer Standard Warranty
Nationwide Delivery
24/7 Technical Support
1. Order code: P802
2. Description: Single Acting, Two Speed pump, Lightweight Hydraulic Hand Pump, 2.54 Litres Usable Oil / Bơm thủy lực ENERPAC Vận hành tay, thân nhựa, tác động đơn 1 chiều, 2 cấp tốc độ, bình dầu 2.54 Lit
Xuất xứ: USA
3. Technical Specifications / Thông số kỹ thuật chi tiết
| Parameter | Value |
|---|---|
| Maximum Operating Pressure | 700 bar |
| Pressure Rating 1st Stage | 27 bar |
| Pressure Rating 2nd Stage | 700 bar |
| Cylinder Compatibility | Single-acting |
| Pump Type | Two Speed |
| Reservoir Capacity | 2540 cm³ |
| Usable Oil Capacity | 2540 cm³ |
| Maximum Flow at Rated Pressure | 2.47 cm³/stroke |
| Oil Displacement per Stroke (1st Stage) | 39.33 cm³ |
| Oil Displacement per Stroke (2nd Stage) | 2.47 cm³ |
| Maximum Handle Effort | 43.1 kg |
| Piston Stroke | 25.4 mm (1 inch) |
| Valve Operation | Manual |
| Power Source | Manual |
| Weight | 8.2 kg |
4. Diagram for connecting between S/A pump and cylinder/ Sơ đồ kết nối Bơm tác động đơn đến Ống và Kích thủy lực
