Thương hiệu:
ENERPAC
PPH40

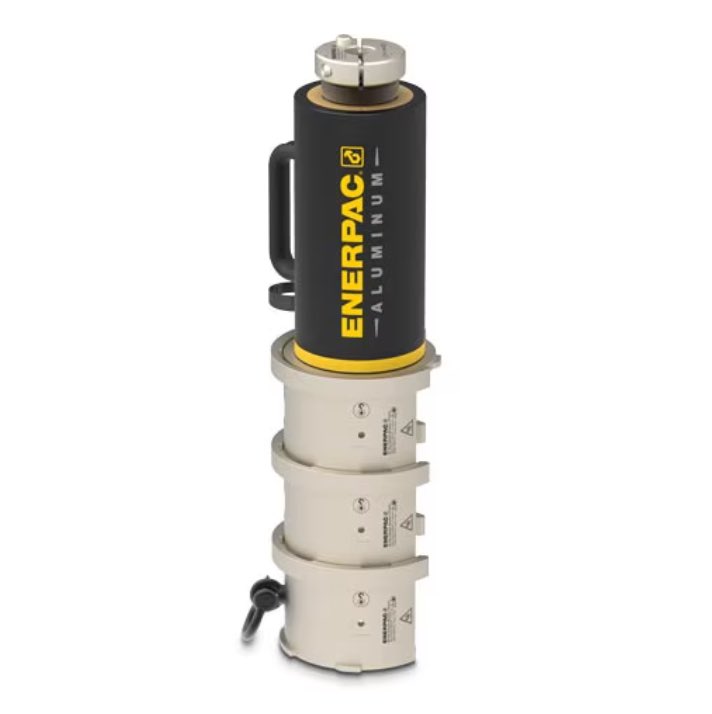

ENERPAC Hydraulic removal kit
Pull capacity: 40 Ton (356 KN)
Stroke: 100mm, Oil capacity: 511cm3, Weight: 10kg
Made in US
Sản phẩm phân phối dự án B2B & Kỹ thuật chính hãng
Liên Hệ Báo Giá Dự Án & Tư Vấn Kỹ Thuật
Sản phẩm thuộc nhóm thiết bị công nghiệp tiêu chuẩn cao. Vui lòng liên hệ bộ phận kỹ thuật Davita để nhận bảng thông số chi tiết, tình trạng tồn kho và chính sách giá ưu đãi dự án tốt nhất.
100% Chính Hãng (CO/CQ)
Bảo Hành Tiêu Chuẩn Hãng
Giao Hàng Toàn Quốc
Hỗ Trợ Kỹ Thuật 24/7
1. Order code: PPH40
2. Description:
- 40 Ton Capacity (imperial tons), Hydraulic Pin Puller Kit
- PPH-Series Hydraulic Pin Pullers provide a faster, safer, and easier pin removal solution for carrying out maintenance on heavy machinery, mining & construction equipment.
- The kit includes 1 cylinder, 1 quick nut, 3 column sections, 1 shackle and 1 eyebolt. It comes complete in a storage case with wheels.
3. Technical Specifications
| Parameter | Value |
|---|---|
| Model | PPH40 |
| Maximum Operating Pressure | 700 bar |
| Capacity | 356 kN (40 imperial tons) |
| Stroke | 100 mm |
| Puller Power Source | Hydraulic |
| Cylinder Oil Capacity | 511 cm³ |
| Recommended Pump Series | SC, XC2, PATG, ZU4, ZE2 |
| Weight | 22.5 kg |
4. Technical Specifications
| Parameter | Value |
|---|---|
| Collapsed Height A1 | 22.91" (582 mm) |
| Collapsed Height A2 | 24.21" (615 mm) |
| Extended Height B1 | 26.89" (682 mm) |
| Extended Height B2 | 28.15" (715 mm) |
| Dimension C | 4.48" (114 mm) |
| Dimension D | 7" (178 mm) |
| Dimension E | 8.46" (215 mm) |
| Dimension F | 12.44" (316 mm) |
| Dimension J | 3.5" (89 mm) |
1. Order code: PPH40
2. Description:
- 40 Ton Capacity (imperial tons), Hydraulic Pin Puller Kit
- PPH-Series Hydraulic Pin Pullers provide a faster, safer, and easier pin removal solution for carrying out maintenance on heavy machinery, mining & construction equipment.
- The kit includes 1 cylinder, 1 quick nut, 3 column sections, 1 shackle and 1 eyebolt. It comes complete in a storage case with wheels.
3. Technical Specifications
| Parameter | Value |
|---|---|
| Model | PPH40 |
| Maximum Operating Pressure | 700 bar |
| Capacity | 356 kN (40 imperial tons) |
| Stroke | 100 mm |
| Puller Power Source | Hydraulic |
| Cylinder Oil Capacity | 511 cm³ |
| Recommended Pump Series | SC, XC2, PATG, ZU4, ZE2 |
| Weight | 22.5 kg |
4. Technical Specifications
| Parameter | Value |
|---|---|
| Collapsed Height A1 | 22.91" (582 mm) |
| Collapsed Height A2 | 24.21" (615 mm) |
| Extended Height B1 | 26.89" (682 mm) |
| Extended Height B2 | 28.15" (715 mm) |
| Dimension C | 4.48" (114 mm) |
| Dimension D | 7" (178 mm) |
| Dimension E | 8.46" (215 mm) |
| Dimension F | 12.44" (316 mm) |
| Dimension J | 3.5" (89 mm) |
