Thương hiệu:
ENERPAC
PPH66

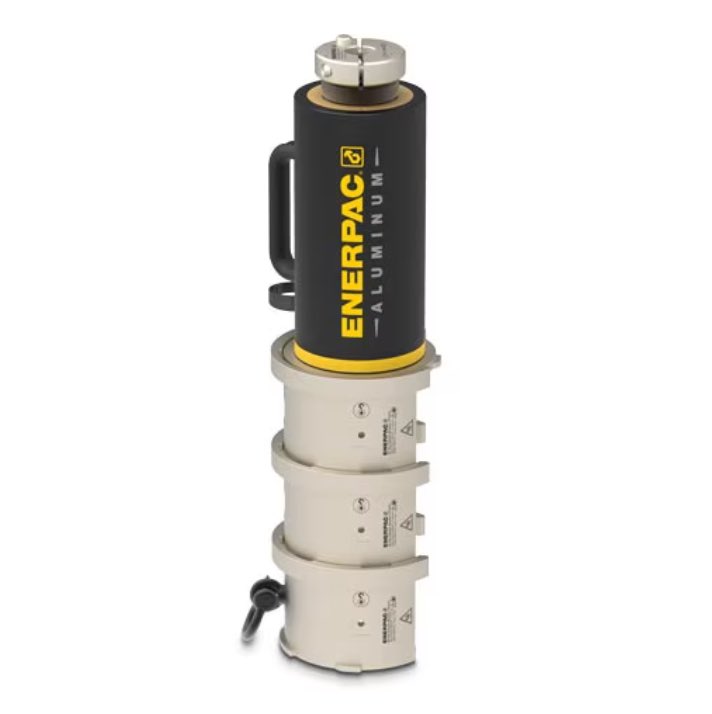

ENERPAC Hydraulic removal kit
Pull capacity: 66 Ton (587 KN)
Stroke: 100mm, Oil capacity: 847cm3, Weight: 22kg
Sản phẩm phân phối dự án B2B & Kỹ thuật chính hãng
Liên Hệ Báo Giá Dự Án & Tư Vấn Kỹ Thuật
Sản phẩm thuộc nhóm thiết bị công nghiệp tiêu chuẩn cao. Vui lòng liên hệ bộ phận kỹ thuật Davita để nhận bảng thông số chi tiết, tình trạng tồn kho và chính sách giá ưu đãi dự án tốt nhất.
100% Chính Hãng (CO/CQ)
Bảo Hành Tiêu Chuẩn Hãng
Giao Hàng Toàn Quốc
Hỗ Trợ Kỹ Thuật 24/7
1. Order code: PPH66
2. Description:
- 66 Ton Capacity (imperial tons), Hydraulic Pin Puller Kit
- PPH-Series Hydraulic Pin Pullers provide a faster, safer, and easier pin removal solution for carrying out maintenance on heavy machinery, mining & construction equipment.
- The kit includes 1 cylinder, 1 quick nut, 3 column sections, 1 shackle and 1 eyebolt. It comes complete in a storage case with wheels.
3. Technical Specifications
| Parameter | Value |
|---|---|
| Maximum Operating Pressure | 700 bar |
| Capacity | 587 kN (66 imperial tons) |
| Stroke | 100 mm |
| Puller Power Source | Hydraulic |
| Cylinder Oil Capacity | 847 cm³ |
| Recommended Pump Series | XC2, PATG, ZU4, ZE2 |
| Weight | 47.5 kg |
4. Technical Specifications
| Parameter | Value |
|---|---|
| Collapsed Height A1 | 24.8" (630 mm) |
| Collapsed Height A2 | 26.42" (671 mm) |
| Extended Height B1 | 28.74" (730 mm) |
| Extended Height B2 | 30.35" (771 mm) |
| Dimension C | 4.48" (114 mm) |
| Dimension D | 9.5" (241 mm) |
| Dimension E | 8.46" (215 mm) |
| Dimension F | 12.44" (316 mm) |
| Dimension J | 4.33" (110 mm) |
