Thương hiệu:
VSM

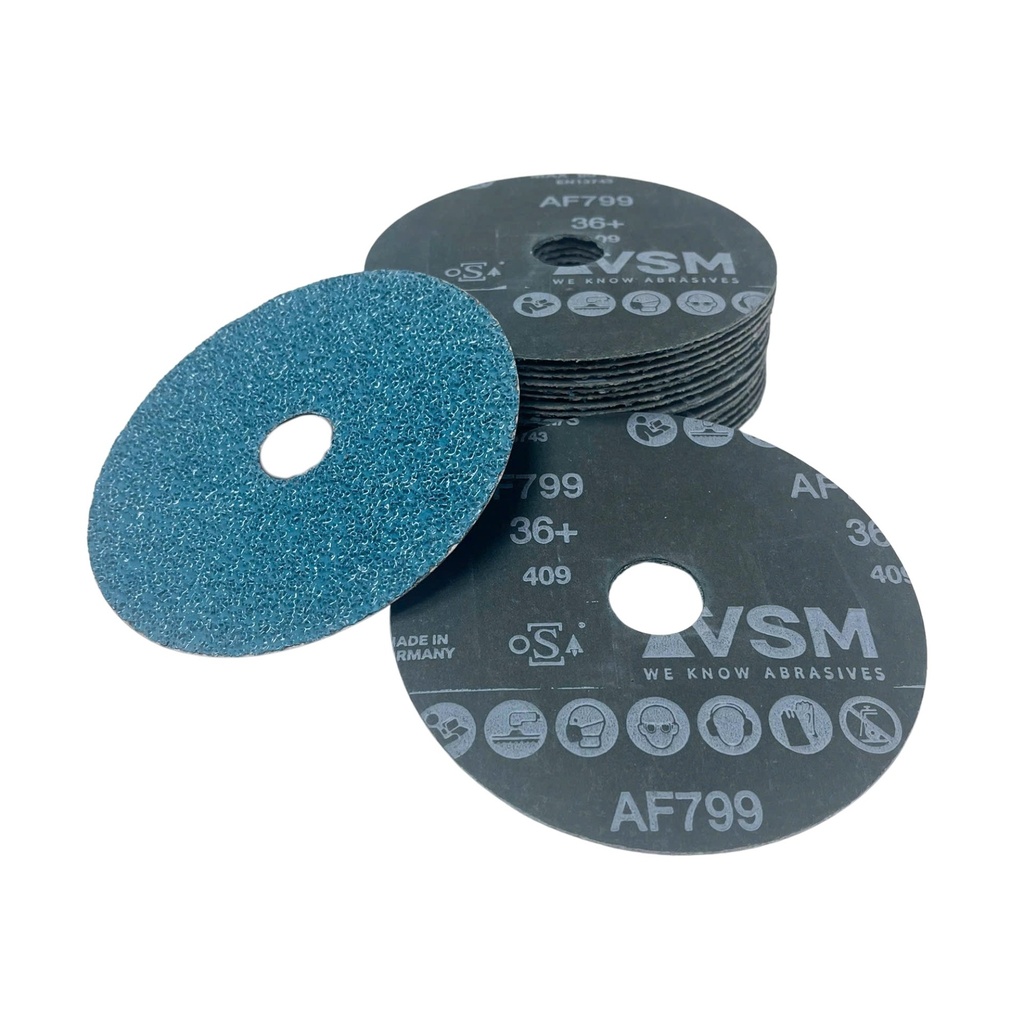

VSM, Size 5 inch, 125mm, AF799 Actirox P36
Ceramic abrasive fibre disc with ultra-hard ceramic grains, designed for grinding high-hardness metals.
Manufacturer: VSM
Material Made in: Germany
B2B Project Supply & Genuine Technical Support
Request a Project Quotation & Technical Advice
This product belongs to our range of high-specification industrial equipment. Please contact the Davita technical team for detailed specifications, stock availability and our best project pricing.
100% Genuine (CO/CQ)
Manufacturer Standard Warranty
Nationwide Delivery
24/7 Technical Support
Order code: VSM AF799 ACTIROX 36+ 125 mm
Manufacturer: VSM – Germany
DAVITA internal code: EIDV09143
Quick summary: Fibre disc Ø125 mm, ACTIROX ceramic grain, grit 36+. For steel and stainless steel, max. 80 m/s, oSa certified, compliant with EN 13743, made in Germany.
1. General information
- The VSM AF799 ACTIROX 36+ 125 mm fibre disc is designed for rough grinding, weld seam grinding and surface flattening on carbon steel and stainless steel (INOX).
- ACTIROX ceramic abrasive grain, grit 36+ – a coarse grit intended for rough grinding.
- The disc is thin and must be mounted on a matching 125 mm backing pad.
- Made in Germany; the disc is marked with oSa, the EN 13743 safety standard and a maximum speed of 80 m/s.
2. Benefits
2.1 Benefits for the plant
- One disc for both steel and stainless steel. A single item covers two materials. The plant stocks fewer SKUs, the store issues tools faster, and operators no longer pick the wrong disc for the steel or stainless steel area.
- Rough grinding with ceramic grain. The coarse ceramic grain is intended for rough grinding, suited to steel structure, tank and shipbuilding workshops with a high grinding volume.
- Clear safety documentation. The oSa mark and the EN 13743 marking printed on the disc give the HSE department a basis to approve the consumable and help meet customer or project owner requirements during plant audits.
- Reusable backing pad. When the disc is worn, only the disc is replaced and the backing pad is reused, reducing consumable costs.
- Complete documents. Each delivery comes with an invoice, certificate of origin (CO), certificate of quality (CQ) and user manual. These meet the requirements of project files, audits and purchasing procedures.
- Reliable supply from an authorised distributor. DAVITA restocks regularly and delivers fast, so the plant can keep its consumables inventory low.
2.2 Benefits for operators
- No need to stop and change discs when switching materials. The disc grinds both carbon steel and stainless steel. On structures that combine both materials, operators keep grinding with one disc without stopping the machine to change it.
- Thin disc follows the surface when flattening. Mounted on a flexible backing pad, the fibre disc suits surface flattening and weld seam finishing on wide surfaces.
- Quick disc changes. The disc is fixed to the backing pad with the machine's clamping nut, so a worn disc is replaced quickly.
- Peace of mind at work. The disc carries the oSa mark and meets the EN 13743 safety standard. Combined with a wheel guard and proper personal protective equipment, operators work more safely.
- Fits common 125 mm angle grinders. Used with a 125 mm backing pad, it fits most 125 mm angle grinders, including the Milwaukee cordless angle grinders distributed by DAVITA.
3. Technical specifications
| Specification | Value |
| Manufacturer code | AF799 ACTIROX 36+ 125 mm |
| Type | Fibre disc |
| Outside diameter | 125 mm |
| Abrasive grain | Ceramic ACTIROX |
| Grit | 36+ |
| Workpiece material | Carbon steel, stainless steel (INOX) |
| Maximum speed | 80 m/s |
| Safety standards | oSa, EN 13743 |
| Manufacturer | VSM |
| Made in: | Germany |
| Machine | Handheld 125 mm angle grinder with a matching backing pad |
| Sales unit | Piece |
4. Choosing the right size and backing pad
| Disc size | Suitable machine and backing pad |
| 100 mm – PFERD FS 100-16 VICTOGRAIN 36 (EIDV03732) / VSM AF799 36+ (EIDV05840) | 100 mm angle grinder; 100 mm backing pad – contact the DAVITA technical team |
| 125 mm – VSM AF799 36+ (this item) | 125 mm angle grinder; 125 mm backing pad: EIDV09348 or EIDV09290 |
| 180 mm – PFERD FS 180-22 VICTOGRAIN 36 (EIDV03733) / VSM AF799 36+ (EIDV05839) | 180 mm angle grinder; 180 mm backing pad: EIDV09349 or EIDV08985 |
If you are unsure which one to choose, contact the DAVITA technical team for advice based on your material and machine.
5. Typical applications and usage notes
5.1 Applications
- Rough grinding and weld seam grinding on steel structures, tanks and piping.
- Surface flattening and cleaning of steel and stainless steel before painting or welding.
- Used in steel structure fabrication, wind tower and pressure vessel manufacturing, shipbuilding and plant maintenance.
5.2 Usage notes
- Always mount the disc on a backing pad of the correct size; never use the disc without a backing pad.
- Do not exceed the maximum speed of 80 m/s printed on the disc; use an angle grinder that matches the disc size.
- Always use the machine's wheel guard. Wear eye or face protection, a dust mask, ear protection and gloves, as shown by the pictograms on the disc.
- Grind with the disc slightly tilted to the surface; do not use the disc for cutting.
- Do not use torn, warped or damp discs.
- Store in a dry place, away from moisture and heat, so the disc does not warp.
6. Buy from DAVITA
- Supply: Fastest delivery in Vietnam - full invoice, certificates and user manual, with support from the DAVITA technical team
- DAVITA ENGINEERING JSC is the authorised distributor of VSM in Vietnam. Order directly on davita.vn or contact the DAVITA technical team for help choosing the right product.
