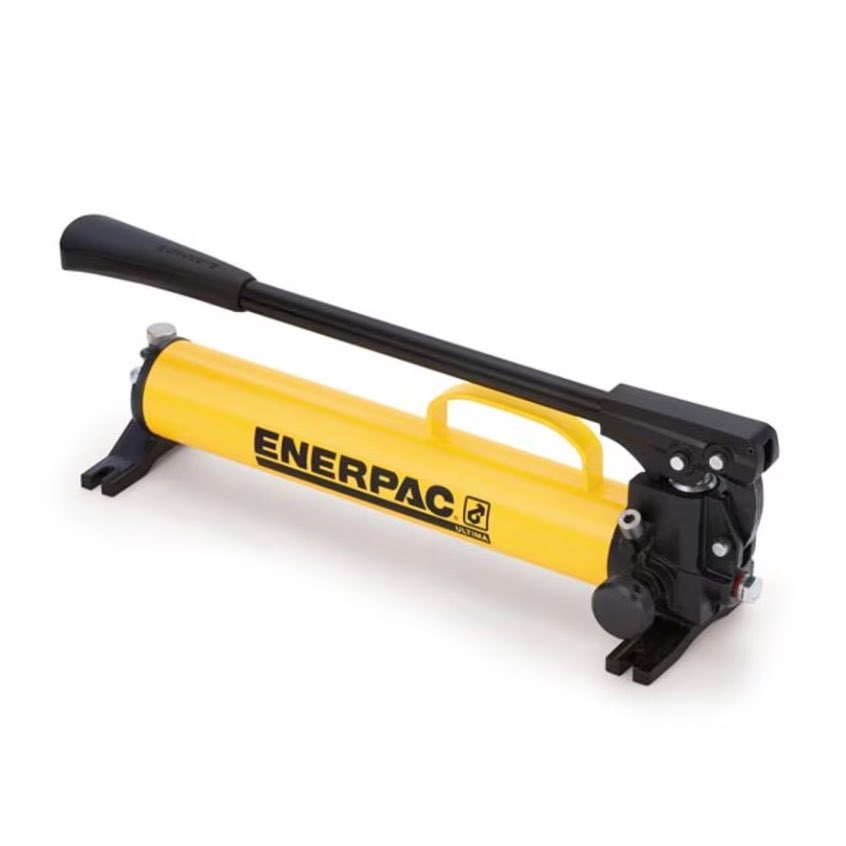

1. Order code: P77
2. Description: Single acting, Two Speed pump, ULTIMA Steel Hydraulic Hand Pump, 672 cm3 Usable Oil
Enerpac P-Series, Ultima Steel Hydraulic Hand Pumps are durable, portable, and easy to use. The range features 2 stage hydraulic pumps for superior speed, and generous oil capacities - ideal for operating multiple hydraulic cylinders
3. Technical Specifications
| Parameter | Value |
|---|---|
| Maximum Operating Pressure | 700 bar |
| Pressure Rating 1st Stage | 34 bar |
| Pressure Rating 2nd Stage | 700 bar |
| Cylinder Compatibility | Single-acting |
| Pump Type | Two Speed |
| Reservoir Capacity | 672 cm³ |
| Usable Oil Capacity | 672 cm³ |
| Maximum Flow at Rated Pressure | 2.46 cm³/stroke |
| Oil Displacement per Stroke (1st Stage) | 16.39 cm³ |
| Oil Displacement per Stroke (2nd Stage) | 2.46 cm³ |
| Maximum Handle Effort | 40 kg |
| Piston Stroke | 25.4 mm (1 inch) |
| Valve Operation | Manual |
| Power Source | Manual |
| Weight | 7.1 kg |
4. Product Dimensions
| Dimension | Value |
|---|---|
| Dimension L | 163 mm |
| Dimension N | 140 mm |
| Dimension P | 111 mm |
| Dimension S | 8.4 mm |
5. Diagram for connecting between S/A pump and cylinder
