1. Order code: P801

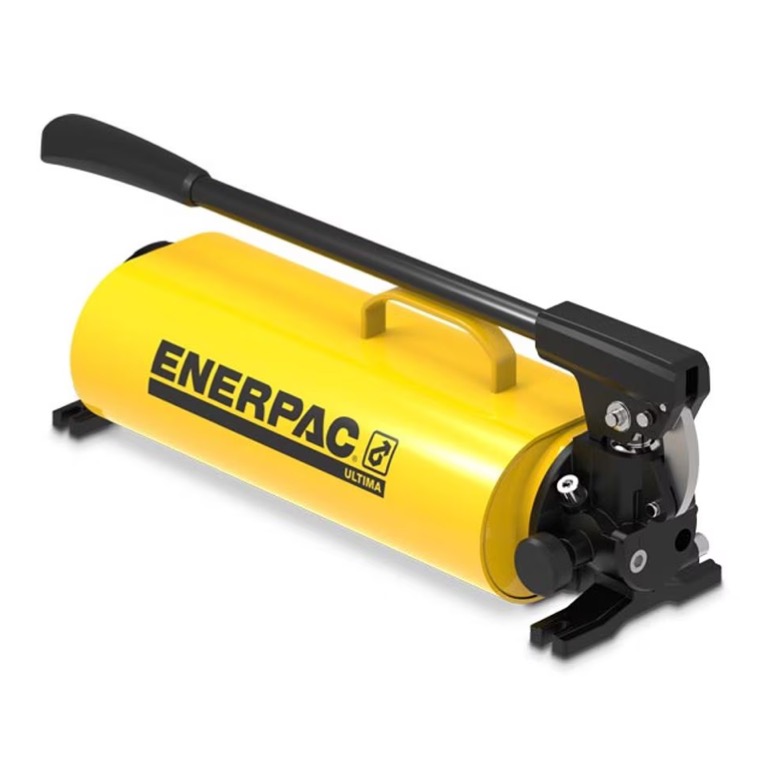

2. Description: Single-acting pump, Two Speed, ULTIMA Steel Hydraulic Hand Pump, 4100 cm3 Usable Oil
3. Technical Specifications
| Parameter | Value |
|---|---|
| Maximum Operating Pressure | 700 bar |
| Pressure Rating 1st Stage | 34 bar |
| Pressure Rating 2nd Stage | 700 bar |
| Cylinder Compatibility | Single-acting |
| Pump Type | Two Speed |
| Reservoir Capacity | 4100 cm³ |
| Usable Oil Capacity | 4100 cm³ |
| Maximum Flow at Rated Pressure | 2.46 cm³/stroke |
| Oil Displacement per Stroke (1st Stage) | 16.39 cm³ |
| Oil Displacement per Stroke (2nd Stage) | 2.46 cm³ |
| Maximum Handle Effort | 35 kg |
| Piston Stroke | 25.4 mm (1 inch) |
| Valve Operation | Manual |
| Power Source | Manual |
| Weight | 14.1 kg |
4. Diagram for connecting between S/A pump and cylinder
