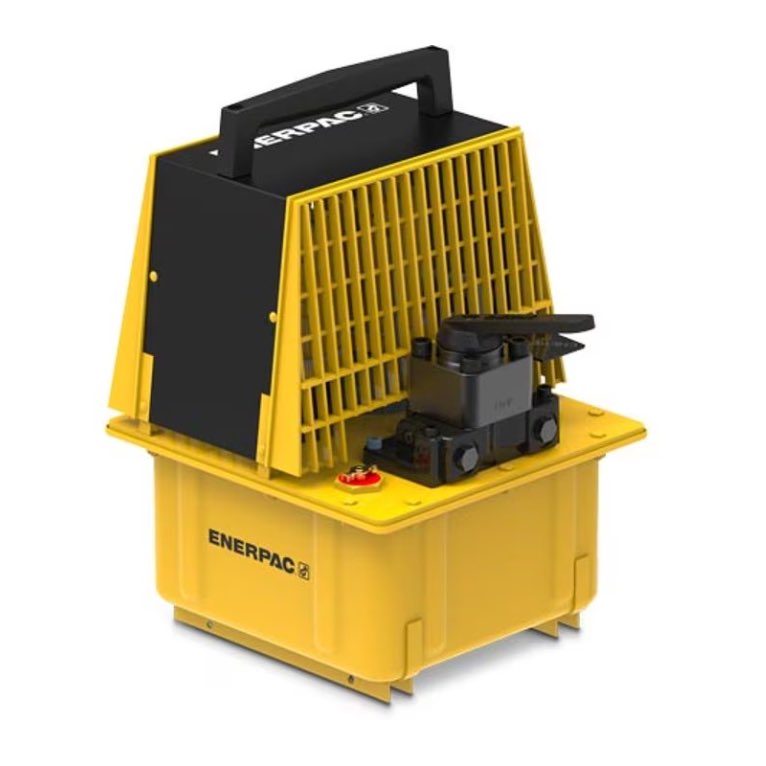

1. Order code: PAM1042
2. Description: Air Hydraulic Pump, 4/3 Manual Valve, 8 litres Reservoir Capacity, For use with Double-Acting Cylinders / Bơm thủy lực chạy bằng Khí nén dùng cho Kích 2 chiều, bình dầu 8 Lit, van tay 3/2
3. Technical Specifications
| Specification | Value |
|---|---|
| Maximum Operating Pressure | 700 bar |
| Cylinder Compatibility | Double-acting |
| Reservoir Capacity (cm³) | 7600 cm³ |
| Reservoir Capacity (litres) | 8 litres |
| Usable Oil Capacity | 7.6 litres |
| Maximum Flow at Rated Pressure | 0.15 l/min |
| Output Flow Rate 1st Stage | 10.65 l/min |
| Output Flow Rate 2nd Stage | 0.15 l/min |
| Valve Function | Advance / Hold / Retract |
| Valve Operation | Manual |
| Valve Type | 4-way, 3-position, Tandem Center |
| Valve Model | VM4 |
| Power Source | Air |
| Pump Control | Manual |
| Air Pressure Range | 4.1 – 8.3 bar |
| Air Consumption | 510 l/min |
| Sound Level | 87 dBA |
| Weight | 27.2 kg |
4. Product Dimensions
| Dimension | Size (mm) |
|---|---|
| Height | 457 mm |
| Length | 320 mm |
| Width | 308 mm |
| Hình ảnh Mô tả kích thước |  |
5. Video mô tả bơm 2 chiều PAM1042
