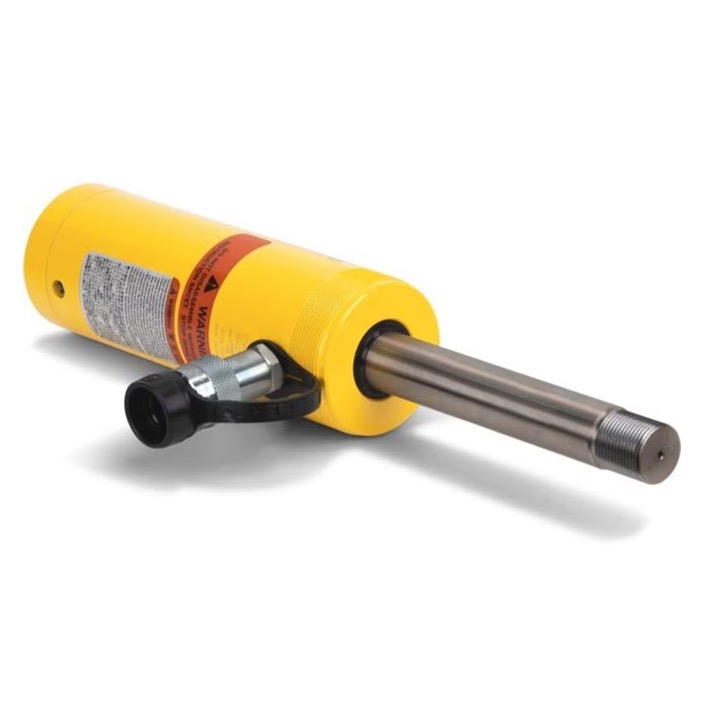

1. Order code: BRC106
2. Description: 11.6 ton Capacity, 151mm Stroke, Pull Hydraulic Cylinder
3. Technical Specifications
| Parameter | Value |
|---|---|
| Maximum Operating Pressure | 700 bar |
| Capacity Class | 10 tons |
| Maximum Cylinder Capacity (Retract) | 105 kN |
| Stroke | 151 mm |
| Collapsed Height A | 289 mm |
| Extended Height B | 440 mm |
| Return Type | Single-Acting, Spring Return |
| Plunger Type | Solid |
| Material | Steel |
| Cylinder Effective Area (Retract) | 15.0 cm² |
| Oil Capacity (Retract) | 228 cm³ |
| Surface Treatment | Paint |
| Coupler | CR400 Coupler |
| Weight | 9.5 kg |
