Brand:
ENERPAC

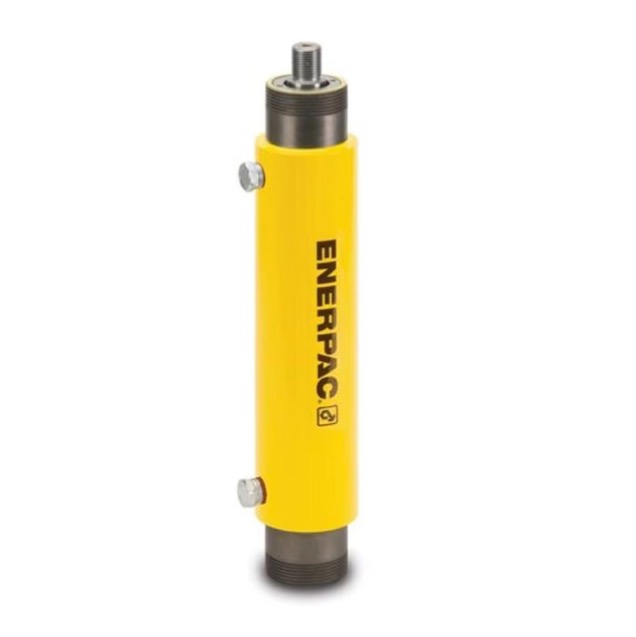

RD96, ENERPAC Hydraulic cylinder
ENERPAC Double Acting Cylinder 9 ton Capacity, 155 mm Stroke
Made in China
B2B Project Supply & Genuine Technical Support
Request a Project Quotation & Technical Advice
This product belongs to our range of high-specification industrial equipment. Please contact the Davita technical team for detailed specifications, stock availability and our best project pricing.
100% Genuine (CO/CQ)
Manufacturer Standard Warranty
Nationwide Delivery
24/7 Technical Support
1. Order code: RD96
2. Description: Double-Acting, General Purpose Hydraulic Cylinder, 9 ton Capacity, 155 mm Stroke / Kích thủy lực tác động Kép, tải trọng 9 Tấn, hành trình 155mm
3.Technical Specifications/ Thông số kỹ thuật
| Specification | Value |
|---|---|
| Maximum Operating Pressure | 700 bar |
| Minimum Operating Pressure | 35 bar |
| Capacity Class | 9 ton |
| Stroke | 155 mm |
| Collapsed Height A | 350 mm |
| Extended Height B | 505 mm |
| Return Type | Double-Acting, Hydraulic Return |
| Plunger Type | Solid |
| Material | Steel |
| Cylinder Effective Area Advance | 11.4 cm² |
| Cylinder Effective Area Retract | 6.3 cm² |
| Oil Capacity Advance | 177 cm³ |
| Oil Capacity Retract | 98 cm³ |
| Cylinder Capacity Advance at 350 bar | 40.0 kN |
| Cylinder Capacity Retract at 350 bar | 21.8 kN |
| Surface Treatment | Paint |
| Coupler | - |
| Weight | 5.6 kg |
4. Diagram of Hose connection with hydraulic pump/ Sơ đồ kết nối kích thủy lực tác động Kép
