1. Order code: PPH66
2. Description:

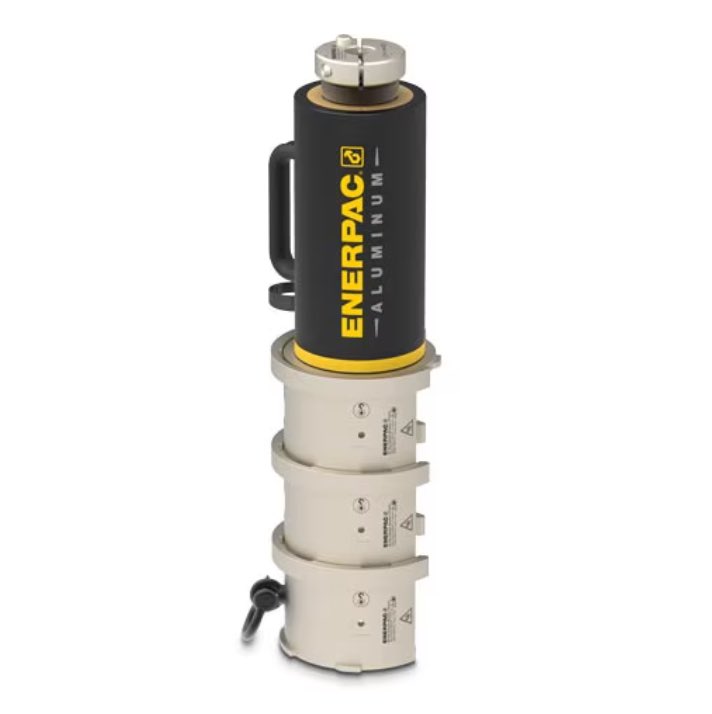

- 66 Ton Capacity (imperial tons), Hydraulic Pin Puller Kit
- PPH-Series Hydraulic Pin Pullers provide a faster, safer, and easier pin removal solution for carrying out maintenance on heavy machinery, mining & construction equipment.
- The kit includes 1 cylinder, 1 quick nut, 3 column sections, 1 shackle and 1 eyebolt. It comes complete in a storage case with wheels.
3. Technical Specifications
| Parameter | Value |
|---|---|
| Maximum Operating Pressure | 700 bar |
| Capacity | 587 kN (66 imperial tons) |
| Stroke | 100 mm |
| Puller Power Source | Hydraulic |
| Cylinder Oil Capacity | 847 cm³ |
| Recommended Pump Series | XC2, PATG, ZU4, ZE2 |
| Weight | 47.5 kg |
4. Technical Specifications
| Parameter | Value |
|---|---|
| Collapsed Height A1 | 24.8" (630 mm) |
| Collapsed Height A2 | 26.42" (671 mm) |
| Extended Height B1 | 28.74" (730 mm) |
| Extended Height B2 | 30.35" (771 mm) |
| Dimension C | 4.48" (114 mm) |
| Dimension D | 9.5" (241 mm) |
| Dimension E | 8.46" (215 mm) |
| Dimension F | 12.44" (316 mm) |
| Dimension J | 4.33" (110 mm) |
