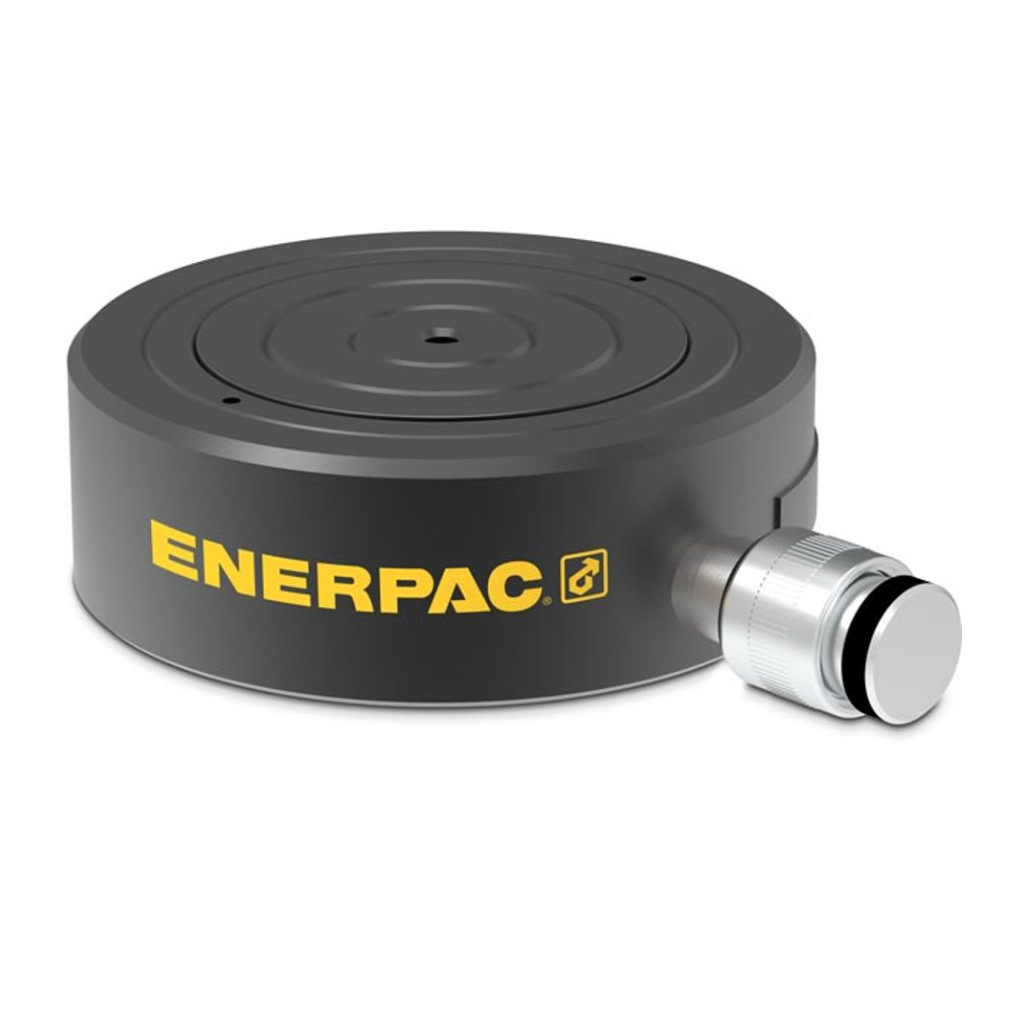

CULP30, ENERPAC Ultra Flat Hydraulic Single Acting cylinder
Request a Project Quotation & Technical Advice
This product belongs to our range of high-specification industrial equipment. Please contact the Davita technical team for detailed specifications, stock availability and our best project pricing.
1. Order code / Mã đặt hàng: CULP30
- Manufacturer: Enerpac
- CULP-Series ultra flat single-acting hydraulic cylinder; 310 kN (30 ton class); 6 mm stroke; with stop ring
Quick summary
Type: Ultra flat (low height, pancake) hydraulic cylinder, single-acting, load return
Maximum capacity: 310 kN · 30 ton capacity class
Stroke: 6 mm · stop ring limits maximum stroke
Height: 35 mm collapsed · 41 mm extended
Maximum operating pressure: 700 bar (10,150 psi)
Coupler: AR630 with dust cap
Weight: 2.5 kg
2. General information:
Enerpac CULP-Series low height hydraulic cylinders, also known as hydraulic pancake cylinders, offer an impressive power-to-height ratio, making them the right choice for confined spaces where other cylinders will not fit. All CULP cylinders are finished with a tough nitrocarburized coating for enhanced corrosion protection in harsh working environments.
2.1 Key features
- Stop ring for maximum stroke limitation
- Extremely low collapsed height: only 35 mm
- Nitrocarburized surface treatment for harsh conditions
- AR630 coupler with dust cap; Enerpac recommends hose HB7206 with AH630 coupler to connect to the pump
3. Detailed technical specifications:
| Specification | Value |
| Maximum operating pressure | 700 bar (10,150 psi) |
| Capacity class | 30 ton |
| Maximum cylinder capacity, advance | 310 kN |
| Stroke | 6 mm |
| Return type | Single-acting, load return |
| Plunger type | Solid |
| Material | Steel |
| Cylinder effective area, advance | 44.2 cm² |
| Oil capacity, advance | 26.5 cm³ |
| Surface treatment | Nitride |
| Coupler | AR630 |
| Weight | 2.5 kg |
4. Dimensions:
| Dimension | Value |
| Collapsed height (A) | 35 mm |
| Extended height (B) | 41 mm |
| Outside diameter (D) | 105 mm |
| Cylinder bore diameter (E) | 75 mm |
5. Choosing the right CULP size and applications
Common CULP models all have a 6 mm stroke and differ in capacity and overall size:
| Model | Max. capacity · collapsed height A · outside diameter D |
| CULP10 | 97 kN · 27.5 mm · 72 mm |
| CULP20 | 198 kN · 32 mm · 90 mm |
| CULP30 | 310 kN · 35 mm · 105 mm |
| CULP50 | 550 kN · 44.5 mm · 140 mm |
Typical applications: lifting, pushing, pressing or aligning machinery and structures in low clearances where standard cylinders will not fit — for example lifting machine bases, alignment during installation, and separating assembled parts.
For help matching the cylinder, pump and hose to your job, please contact the DAVITA Technical team.
6. Operating notes
- Rated load and stroke are the manufacturer’s maximum safe limits; Enerpac recommends using only 80% of these ratings.
- Single-acting, load return cylinder: the plunger retracts only under load or an external force.
- Use a 700 bar pump and hose; connect to the AR630 coupler with hose HB7206 (AH630 coupler) as recommended by Enerpac.
- Matching repair kit: CULP30K.
- Read the Enerpac operation manual L4213 carefully before use.
7. Buy from DAVITA
Supply: Fastest delivery in Vietnam - full invoice, certificates and user manual, with support from the DAVITA technical team
- DAVITA is the authorised Enerpac representative in Vietnam.
- Technical advice on matching cylinders, pumps, hoses and couplers for each job.
- Zalo OA: DAVITA on Zalo · Hotline: Ms. Anh +84 966 440 140 · Quotation: Contact DAVITA
