SG11TMSTD
1Mechanical Zero-gap Flange Spreading Kit 12.3 ton capacity, 90mm Maximum Spread
SKU:
N/A
Category:
Founded in 1910 in Wisconsin (USA), ENERPAC has rapidly become the world’s leading manufacturer of high-pressure and ultra high-pressure hydraulic tools.
The brand encompasses several renowned sub-brands, including SIMPLEX, LARZEP, MIRAGE, EQUALIZER, Hydratight, and DTA
1. Order code: SG11TMSTD
2. Description: Mechanical Flange Spreading Kit 12.3 ton capacity, 90mm Maximum Spread
3. Technical Specifications
| Parameter | Value |
|---|---|
| Maximum Spread | 90 mm |
| Power Source | Mechanical |
| Maximum Operating Torque | 120 Nm |
| Capacity | 11 metric tons (110 kN) |
| Flange Minimum Access Gap A | 0 mm |
| Flange Bolt-hole Diameter B | 30–39 mm |
| Tip Clearance | 0 mm |
| Usable on Flanges | M30, M33, M36, 1 1/8”, 1 1/4”, 1 3/8” bolts |
| Weight | 20 kg |
| Parameter | Value |
|---|---|
| Dimension A | 20.3" (516 mm) |
| Dimension A1, Minimum Axial Tool Space | 8.8" (223 mm) |
| Dimension A2, Minimum Axial Tool Space | 10.2" (258 mm) |
| Dimension B | 9.8" (250 mm) |
| Dimension C, Maximum Flange Clearance | 2.4" (60 mm) |
| Dimension D | 3.5" (90 mm) |
| Dimension E | 18.2" (462 mm) |
| Dimension F | 2.4" (60 mm) |
| Dimension F, Minimum Flange Joint Thickness | 3.8" (96 mm) |
| Dimension F, Maximum Flange Joint Thickness | 9.4" (240 mm) |
| Dimension R, Minimum Radial Space | 9.4" (240 mm) |
| Dimension V, Minimum Valve/Spacer Thickness | 0" (0 mm) |
| Dimension V, Maximum Valve/Spacer Thickness | 2.4" (60 mm) |
| Case Dimensions | 25.2 x 21.3 x 6.5" (640 x 540 x 165 mm) |

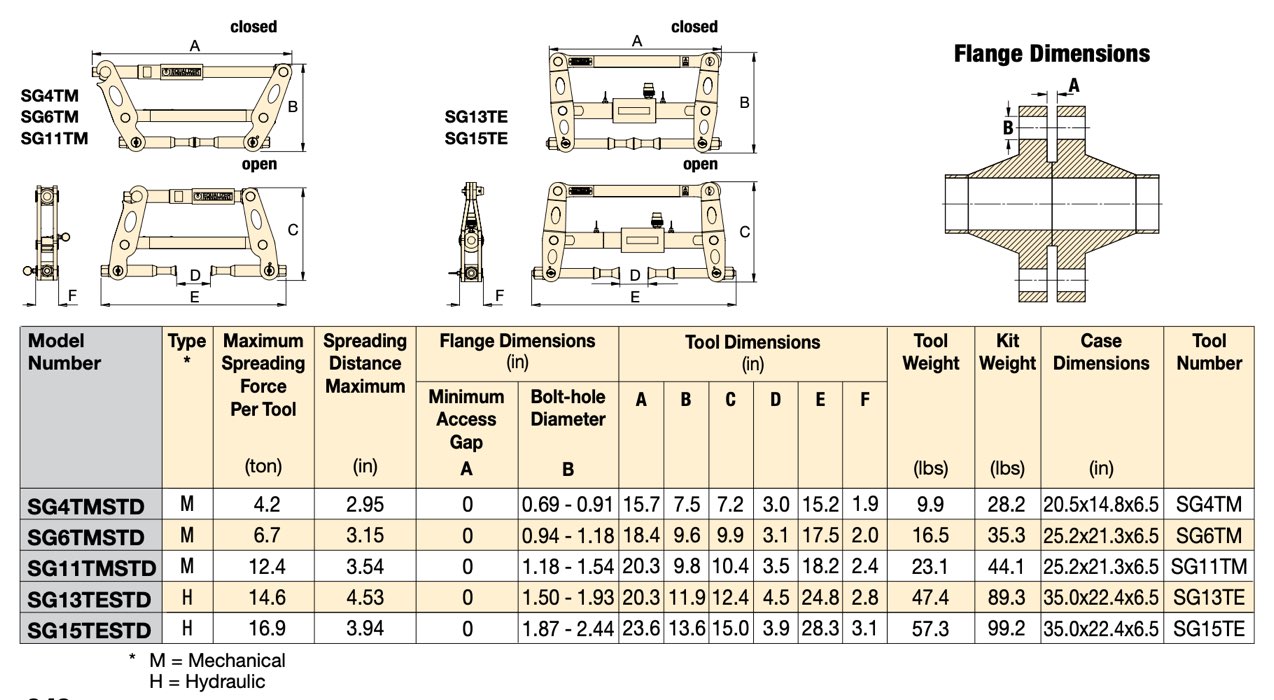

5. Selection chart
6. Video Application description
Alternative Products
SG13TESTD
VC10/18TESTD
