FA4TMSTD ENERPAC Mechanical Flange Alignment Tool Set
ENERPAC Mechanical Fixed Flange & Rotational Alignment Tool Set 4 Ton
Request a Project Quotation & Technical Advice
This product belongs to our range of high-specification industrial equipment. Please contact the Davita technical team for detailed specifications, stock availability and our best project pricing.
1. Order code: FA4TMSTD
2. Description: The FA4TM Mechanical Linear & Rotational Alignment Tool is a simple solution to medium diameter, medium pressure flange joint misalignment. / Nguyên bộ Dụng cụ cân chỉnh xoay và làm thẳng mặt bích, vận hành bằng Cờ lê Tay (Manual Operated)
3. Technical Specifications
| Specification | Value |
|---|---|
| Maximum Reaction Force | 4 metric ton |
| Maximum Reaction Force | 40 kN |
| Minimum Bolt Size | 25 mm |
| Reaction Force 2 Max | 4 metric ton |
| Bolt Hole Diameter Min B | 25 mm |
| Misalignment Min M | 0 mm |
| Case Dimensions | 600 × 370 × 200 mm |
| Weight | 8.6 kg |

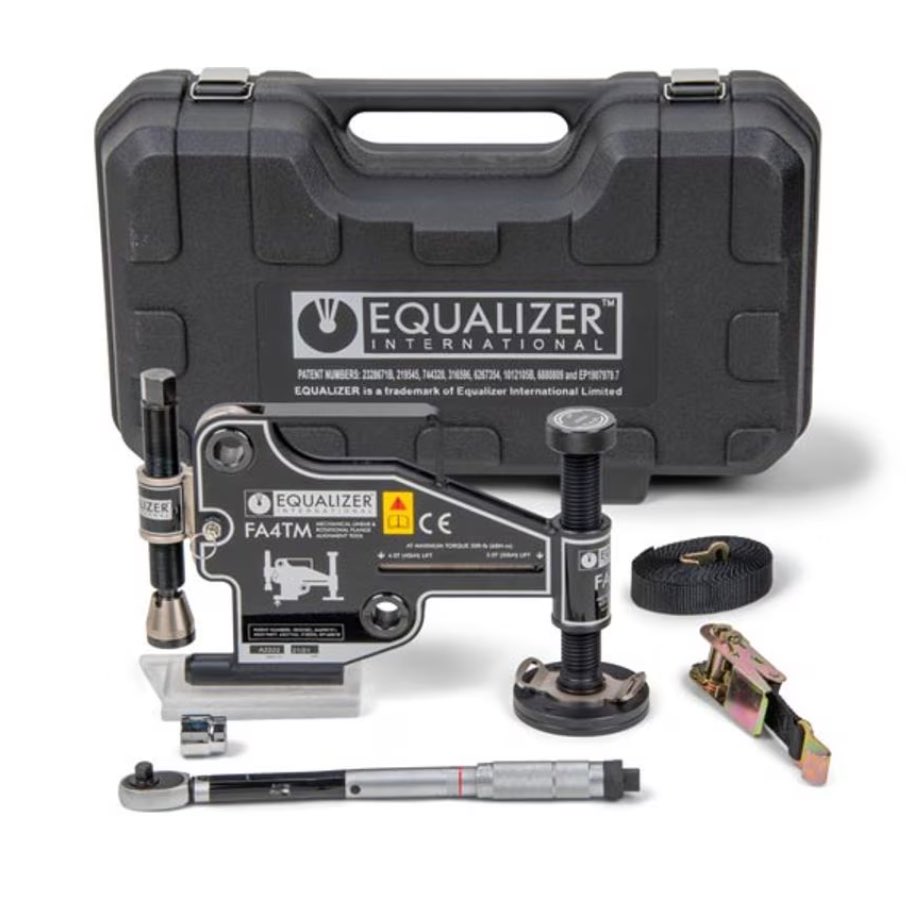

4. The FA4TMSTD Set includes: / Nguyên bộ FA4TMSTD bao gồm:
1 x FA4TM Tool
1 x 68Nm (50ft·lb) Torque Wrench / 1 cờ lê tay lực siết 68Nm
1 x 22mm Socket
1 x Ratchet Strap
1 x Instruction Manual
1 x Carry-Case
5. Video demo
