Brand:
ENERPAC

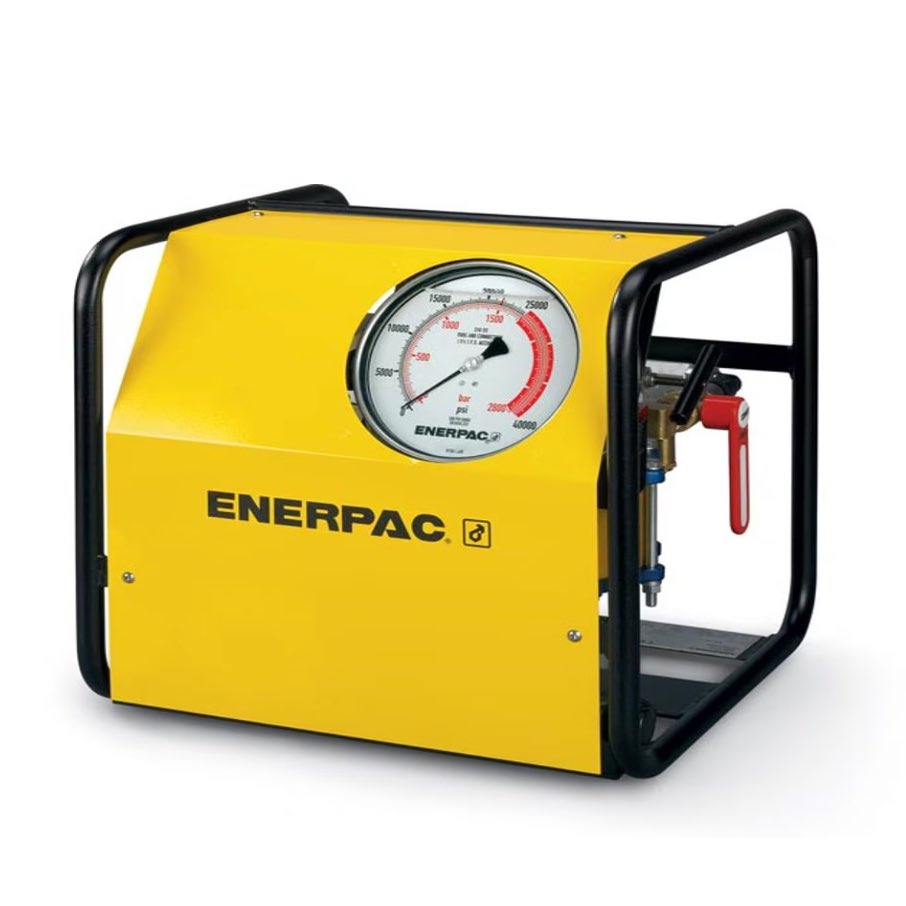

ATP1500 ENERPAC 1500bar High Pressure Hydraulic Air-DrivenTensioning Pump
ENERPAC Hydraulic Air-driven Tensioning Pump (for Bolt Tensioner), Pressure 1500Bar max, ATEX Certify
Made in: US
B2B Project Supply & Genuine Technical Support
Request a Project Quotation & Technical Advice
This product belongs to our range of high-specification industrial equipment. Please contact the Davita technical team for detailed specifications, stock availability and our best project pricing.
100% Genuine (CO/CQ)
Manufacturer Standard Warranty
Nationwide Delivery
24/7 Technical Support
1. Order code: ATP1500
2. Description: High Pressure Hydraulic Air Tensioning Pump, 1500Bar (~21,750 psi) / Bơm chạy Khí nén hãng ENERPAC dùng cho hệ Căng bulong bằng thủy lực, áp suất đến 1500bar
3. Technical Specifications
| Parameter | Value |
|---|---|
| Maximum Operating Pressure | 1500 bar |
| Reservoir Capacity | 3800 cm³ (3.8 litres) |
| Usable Oil Capacity | 3.8 litres |
| Maximum Flow at Rated Pressure | 0.07 l/min |
| Output Flow Rate at 0 bar | 0.43 l/min |
| Output Flow Rate at 1500 bar | 0.07 l/min |
| Power Source | Air |
| Air Pressure Range | 5.5 – 6.2 bar |
| Air Consumption | 594 l/min |
| Sound Level | 70 dBa |
| Weight | 32 kg |
