ENERPAC
Code:EIDV07380
Authorised Distributor
Brand: ENERPAC

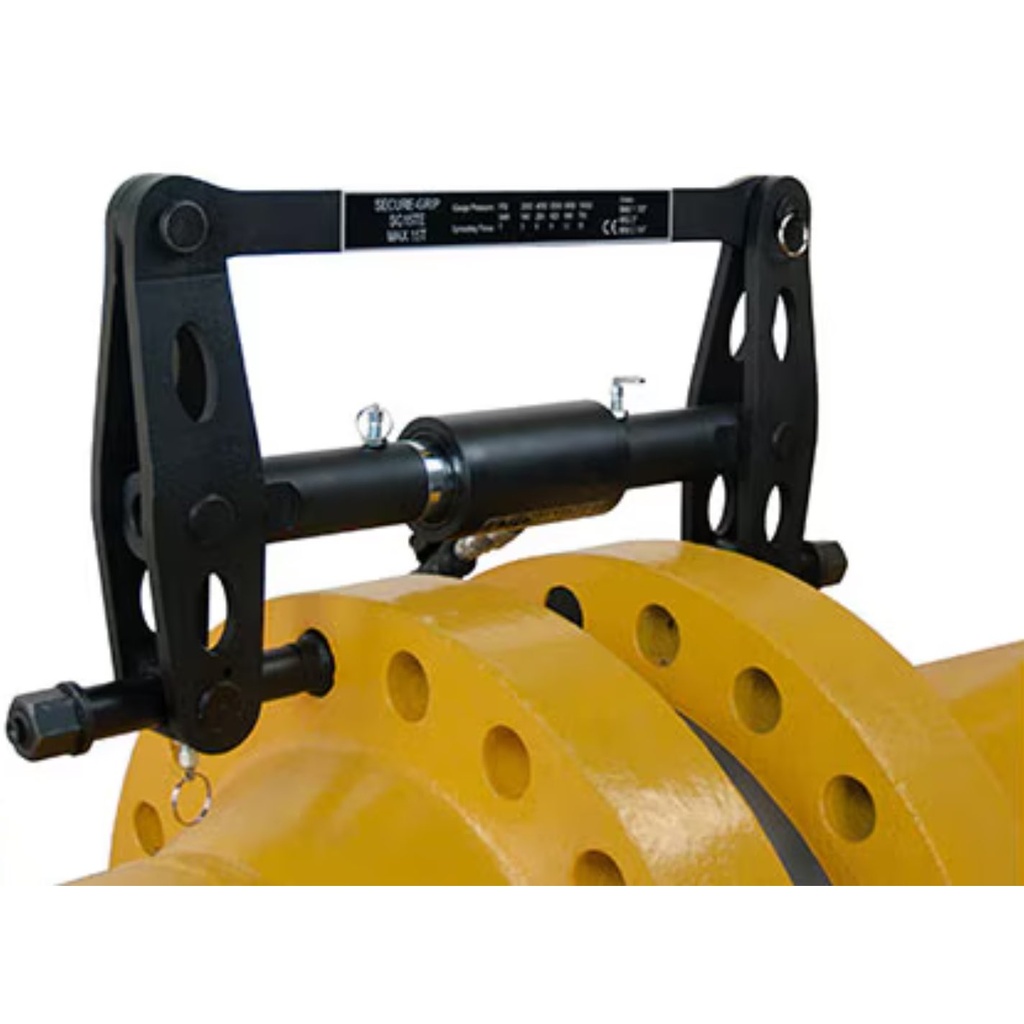

VC10/18TESTD ENERPAC Hydraulic Flange spreader

Bán chạy

ENERPAC 11.2 Ton Capacity, Flange Spread tool
Secure-Grip Valve Change-Out Standard Tool Set, 150mm Maximum Spread

B2B Project Supply & Genuine Technical Support
Request a Project Quotation & Technical Advice

This product belongs to our range of high-specification industrial equipment. Please contact the Davita technical team for detailed specifications, stock availability and our best project pricing.

Hotline: 0933.808.062 Zalo Technical Chat
100% Genuine (CO/CQ)
Manufacturer Standard Warranty
Nationwide Delivery
24/7 Technical Support

1. Order code: VC10/18TESTD

2. Description: 11.2 Ton Capacity, Secure-Grip Valve Change-Out Standard Tool Set, 150mm Maximum Spread

3. Technical Specifications

ParameterValue
Maximum Operating Pressure690 bar
Power SourceHydraulic
Capacity10 metric tons (100 kN)
Stroke151 mm
Tip Clearance0 mm
Weight85 kg

4. Product Dimension:


ParameterValue
Dimension A1, Minimum Axial Tool Space11.8" (300 mm)
Dimension A2, Minimum Axial Tool Space14.6" (370 mm)
Dimension C, Maximum Flange Clearance5.1" (130 mm)
Dimension F, Minimum Flange Joint Thickness6.9" (176 mm)
Dimension F, Maximum Flange Joint Thickness27.2" (690 mm)
Dimension R, Minimum Radial Space14.2" (360 mm)
Dimension V, Minimum Valve/Spacer Thickness0" (0 mm)
Dimension V, Maximum Valve/Spacer Thickness20.2" (514 mm)

CATALOG DOWNLOAD- VC SERIES
