Brand:
ENERPAC

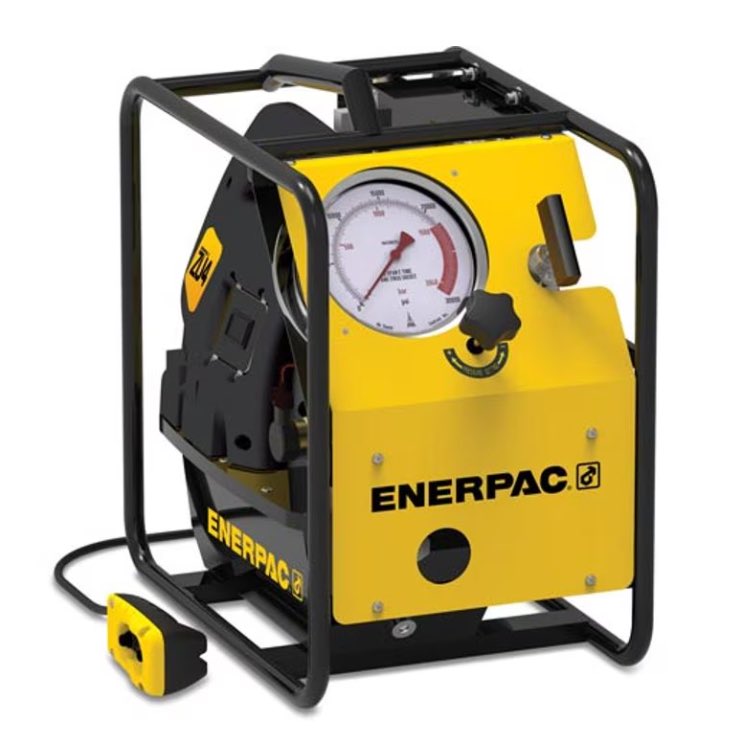

ZUTP1500SE, ENERPAC Electric Driven for Hydraulic Bolt Tensioning
Electric Hydraulic Tensioning Pump (for Bolt Tensioner), Two Speed, Solenoid Valve, European Plug, 230V
Made in: ENERPAC US
B2B Project Supply & Genuine Technical Support
Request a Project Quotation & Technical Advice
This product belongs to our range of high-specification industrial equipment. Please contact the Davita technical team for detailed specifications, stock availability and our best project pricing.
100% Genuine (CO/CQ)
Manufacturer Standard Warranty
Nationwide Delivery
24/7 Technical Support
1. Order code / Mã đặt hàng: ZUTP1500SE
2. Description/ Mô tả: Two Speed, Electric Hydraulic Tensioning Pump, 4,0 litres Usable Oil, Solenoid Valve, European Plug, 230V / Bơm thủy lực vận hành bằng điện 230V, có 2 tốc độ, thể tích bình dầu 4 lít, có Van điện từ
3. Technical Specifications / Thông số kỹ thuật
| Specification | Value |
|---|---|
| Maximum Operating Pressure (bar) | 1500 |
| Reservoir Capacity (cm³) | 4000 |
| Usable Oil Capacity (litres) | 4.0 |
| Maximum Flow at Rated Pressure | 0.33 l/min |
| Output Flow Rate at 0 bar (l/min) | 3.8 |
| Output Flow Rate at 1500 bar (l/min) | 0.33 |
| Motor Size (hp) | 1.7 |
| Motor Size (kW) | 1.25 |
| Motor Hertz | 50 Hz |
| Motor Phases | 1 Ph |
| Motor Voltage | 208–240 V |
| Valve Operation | Solenoid |
| Power Source | Electric |
| Motor Electrical Specification | 230 V, 1 Ph |
| Sound Level (dBa) | 89 |
| Weight (kg) | 29.5 |
4. Selection pump info / bảng phân loại Bơm căng bu lông
