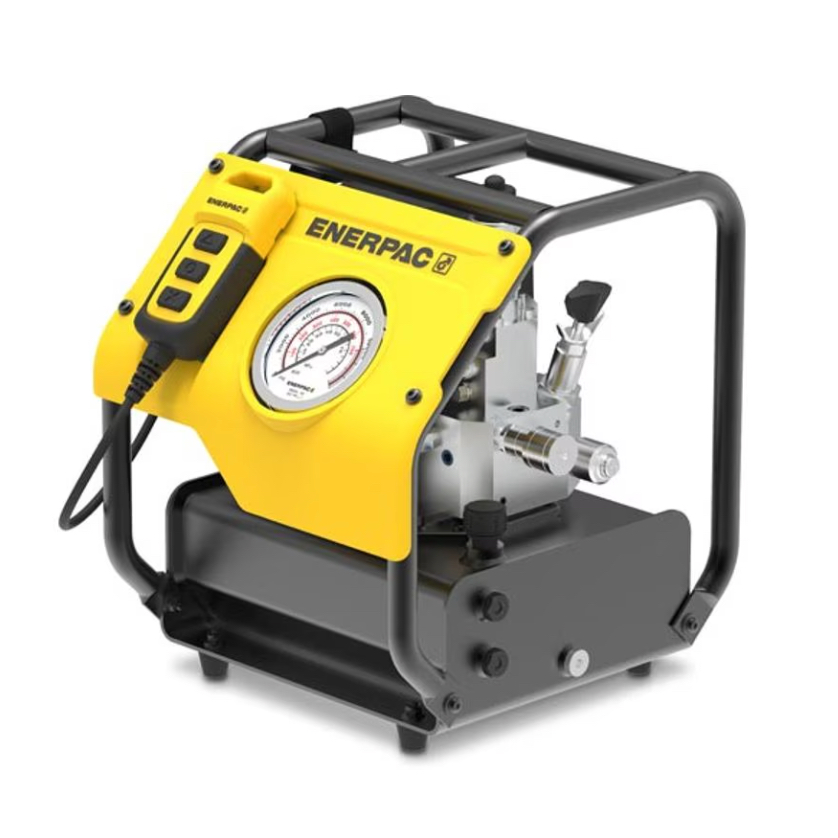

LU2504TE-QR, ENERPAC Electric driven Pump for Hydraulic Torque Wrench

1. Order code / Mã đặt hàng: LU2504TE-QR

- Manufacturer: Enerpac

- LU-Series electric hydraulic pump for torque wrenches; maximum pressure 700 bar; power supply 208–240 V, single-phase

Quick summary

Type: LU-Series electric hydraulic torque wrench pump, solenoid-operated 4-way, 2-position valve

Maximum operating pressure: 700 bar (10,000 psi)

Oil: reservoir 3 litres · usable oil 1.9 litres

Flow: 3.1 l/min at no load · 0.33 l/min under load

Motor: 0.54 kW (0.73 hp) · 208–240 V, single-phase, 50/60 Hz · 4 A at 230 V

Control: pendant (hand-held remote control)

Weight and dimensions: 18.8 kg · H 372 × L 315 × W 345 mm

2. General information:

LU2504TE-QR is an electric hydraulic pump from the Enerpac LU-Series, a lightweight, easy-to-use solution designed specifically for intermittent bolting applications — ideal for crews handling maintenance and repair work. It delivers the portability and speed users expect, backed by Enerpac durability for reliable use in the field.

2.1 True portability, ergonomic design

• Lightweight and compact pump shape makes transport easy
• Multiple lifting points and angled handles for safer handling
• Pendant control with integrated pocket and 20 ft (approx. 6 m) detachable cord
• Upward-facing 4 inch glycerine-filled pressure gauge, angled for ideal visibility

2.2 Tough and reliable

• Designed for intermittent bolting applications, easy to use
• Protected by a durable roll cage
• Removable rugged front plate
• Aluminium reservoir sized for common torque jobs, not oversized

2.3 Optimised oil flow

• Calibrated for torque wrench duty cycles
• 2-stage pump: faster to pressure where it counts

3. Detailed technical specifications:

4. Dimensions:

5. Choosing the right version and applications

The LU2504 is available in two versions that differ in supply voltage:

Typical applications: intermittent bolt tightening and loosening in maintenance and repair — pipe flanges, tanks and plant machinery — together with Enerpac hydraulic torque wrenches.

For continuous, high-volume bolting or when running several wrenches at once, please contact the DAVITA Technical team to select a pump with a larger reservoir.

6. Operating notes

• Check that the power supply is 208–240 V, single-phase, before connecting the pump.
• Use twin hydraulic hoses and couplers rated for at least 700 bar and compatible with the torque wrench in use.
• Do not set the pressure above the maximum working pressure of the wrench; convert pressure to torque using the chart for each wrench.
• Read the Enerpac operation manual L4991 carefully before use.

7. Buy from DAVITA

Supply: available stock in Vietnam with full invoice, Genuine Enerpac product and complete certificates

• DAVITA is the authorised Enerpac representative in Vietnam.
• Technical advice on matching pumps, hydraulic torque wrenches, hoses and couplers for each bolting job.
• Zalo OA: DAVITA on Zalo · Hotline: Ms. Anh +84 966 440 140 · Quotation: Contact DAVITA
