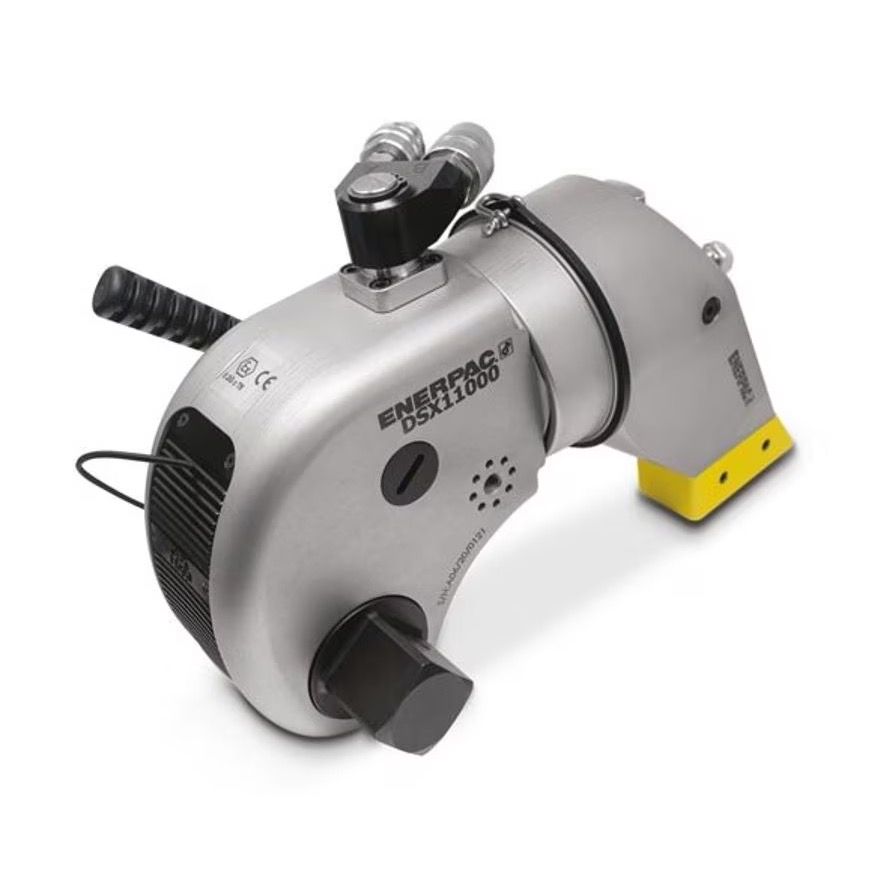

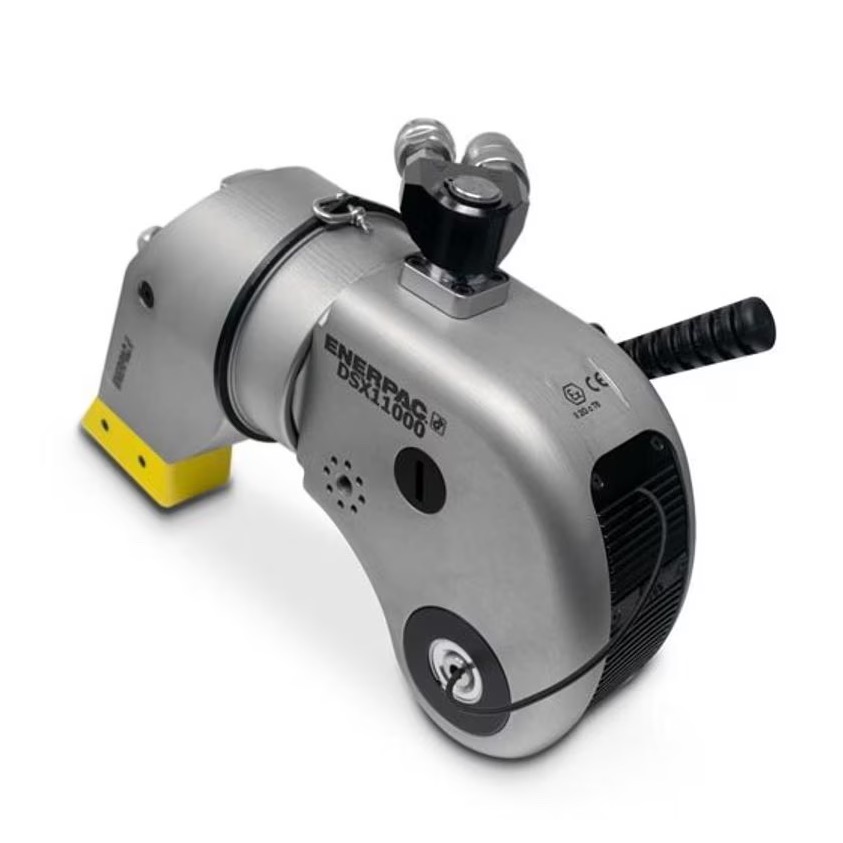

1. Order code/ Mã đặt hàng: DSX5000

HÀNG CÓ SẴN TẠI KHO DAVITA ĐỂ CHO THUÊ THỰC HIỆN DỊCH VỤ THÁO LẮP BU LÔNG

Series: DSX

Product Line: Bolting Tools/ Dòng sản phẩm Tháo Siết bulong

2. Description:

• Square Drive Aluminum Hydraulic Torque Wrench / Cờ lê thủy lực đầu ra trục vuông, vật liệu Nhôm nhẹ
• Maximum Torque (Moment xoắn tối đa): 7640 Nm
• Square Drive size: 1 1/2 inch (1.5 inch) / Trục vuông đầu ra 1.5 inch (cần mua thêm Impact socket loại chịu tải cao tương ứng với từng size AF Nut)

DSX-Series_Aluminum_Square_Drive_Torque_Wrenches_EN-US- Catalog Download

3. Torque Wrench Specifications / Chi tiết thông số kỹ thuật

4. DSX-Series description: Square Drive Hydraulic Torque Wrenches are a lighter alternative to steel alternatives and are therefore a great choice when improved portability and easier handling are important.

Each hydraulic torque wrench in the series features industry-first and patented* design features for safer and easier operation while working at height. These include a working-at-height tether point and a retained reaction arm - both which prevent injury and near misses from dropped objects.

A fully enclosed drive and the ergonomic safety handle further enhances operator safety and ATEX certification provides reassurance for the operator when working in explosive atmospheres.

You might expect that a torque wrench fully loaded with so many safety and convenience features to be priced at the top of the market. But the mid-range pricing of DSX torque wrenches makes them incredibly strong contenders for 'mid-weight' users and cost-conscious buyers.

Safety and Performance

• High-strength, lightweight aluminum, slimline design suited for complete operator safety
• Fully enclosed drive for maximum safety
• Built-in, work-at-height safety tether connection
• Retained quick release push-button
• Patented, easy-to-use, quick release, retained reaction arm
• Fine-tooth ratchet prevents the tool 'locking on'
• High-cycle design with fewer moving parts making it a more efficient tool to operate, maintain, or repair.
• 35 degree rotation angle and rapid return stroke for fast operation
• Supplied with a calibration certificate

Simplicity

• Robust handle which mounts on either side of the tool for extra maneuverability and safer operation
• Push-button square drive and reaction arm for fast changes and adjustments
• Easily accessible work-at-height connection point

Accuracy

• Constant torque output provides accuracy of +/- 3% across full stroke.

ATEX certified

• All DSX tools are CE - ATEX certified / Tất cả sản phẩm dòng DSX đều có Chứng nhận CE - ATEX Chống cháy nổ

*Patented Features

1) The Reaction Arm locking mechanism. Applicable countries: UK, Europe, USA & Canada.

2) The Safety Tether. A steel wire tether that limits the total removal of the arm and providing the rotating connection point for working at height. Applicable countries: UK, USA, Europe, China & Australia

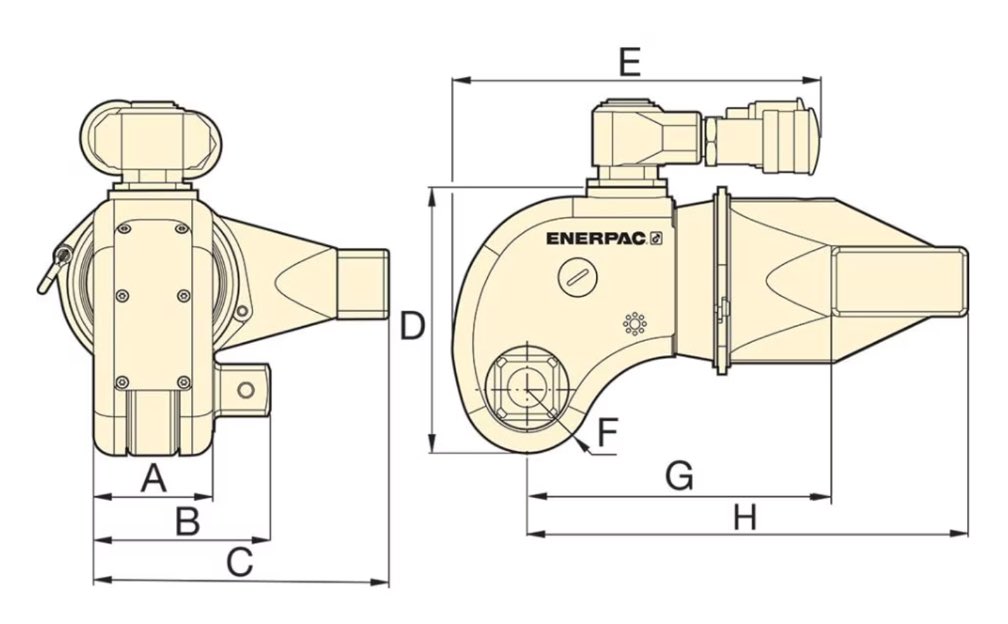

6. Dimension/

Description (Mô tả chi tiết)	Value (Giá trị)
Dimension A (Kích thước A)	69 mm
Dimension B (Kích thước B)	112 mm
Dimension C (Kích thước C)	173 mm
Dimension D (Kích thước D)	148 mm
Dimension E (Kích thước E)	192 mm
Dimension F (Kích thước F)	38 mm
Dimension G (Kích thước G)	180 mm
Dimension H (Kích thước H)	260 mm
