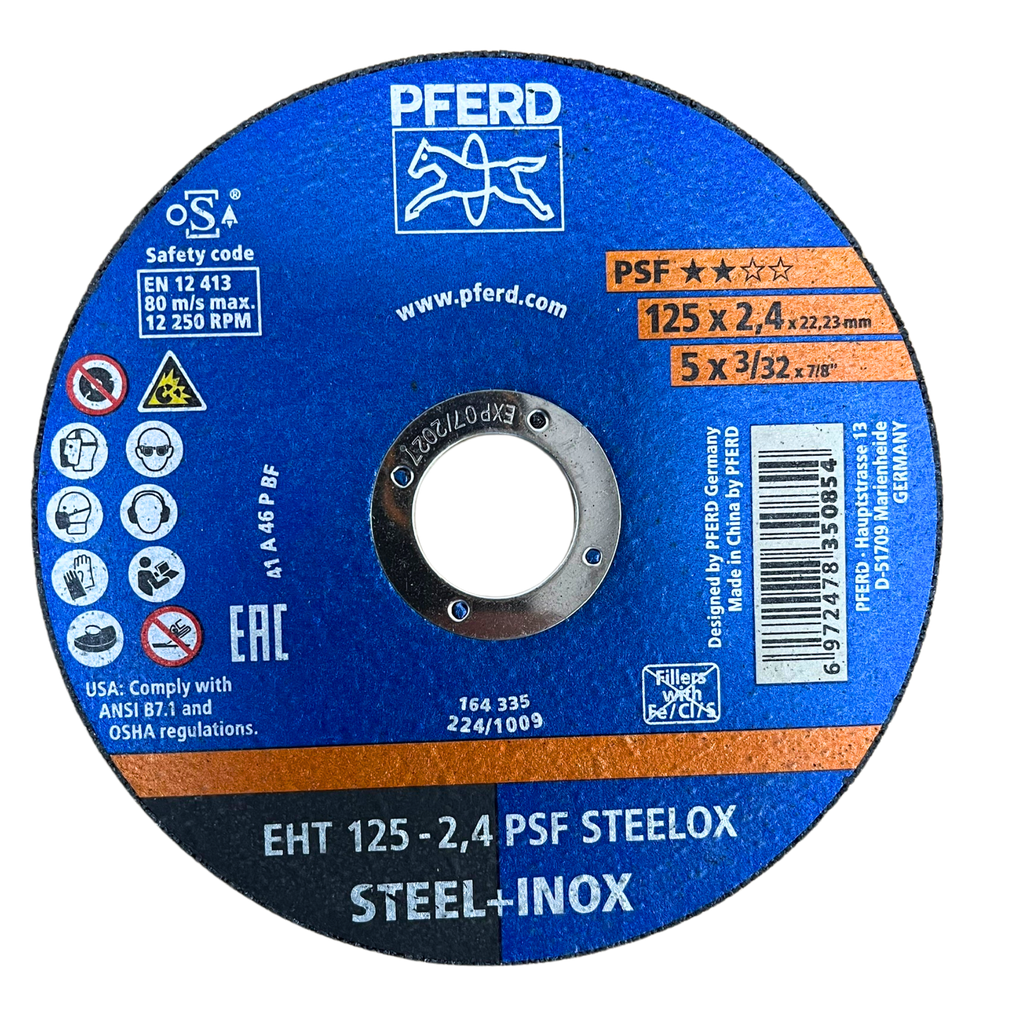

Pferd cutting disc 5 inch, size 125x2.4x22.23mm, EHT 125-2,4 PSF STEELOX, code 350854

Order code: EHT 125-2,4 PSF STEELOX
Manufacturer: PFERD – designed in Germany, made in China by PFERD
DAVITA internal code: EIDV04926

Quick summary: Type 41 flat cut-off wheel, 125 x 2.4 x 22.23 mm (5 x 3/32 x 7/8 inch). For both steel and stainless steel (STEEL+INOX). Maximum speed 12,250 r/min, oSa certified, compliant with EN 12413.

1. General information

• The PFERD EHT 125-2,4 PSF STEELOX cut-off wheel is designed for cutting carbon steel and stainless steel (INOX) on 125 mm handheld angle grinders. The label states STEEL+INOX: one wheel covers both materials.
• The wheel contains fillers with a very low content of iron (Fe), chlorine (Cl) and sulphur (S). As a result, the cut does not contaminate stainless steel. This makes it suitable for stainless steel workshops with strict corrosion-resistance requirements.
• The wheel is 2.4 mm thick, flat and reinforced with fibreglass mesh. It is the sturdiest of the three 125 mm PSF STEELOX thicknesses DAVITA supplies, suited to cutting thick-walled sections and solid steel.
• The PSF line is rated ★★☆☆ on PFERD's 4-star performance scale. It is a universal line that balances price and performance. The wheel carries the oSa mark of the Organisation for the Safety of Abrasives (osa-abrasives.org). It complies with the European standard EN 12413 and with USA ANSI B7.1 / OSHA regulations.

2. Benefits

2.1 Benefits for the plant

• No contamination of stainless steel, less rust after processing. Iron left on a stainless steel cut edge causes rust spots, and chlorine and sulphur increase the risk of pitting corrosion. Fillers with very low Fe/Cl/S content help stainless steel keep its corrosion resistance. This reduces cleaning and rework costs and lowers the risk of customer complaints.
• One cut-off wheel for both steel and stainless steel. A single item covers two materials. The plant stocks fewer SKUs, the store issues tools faster, and operators no longer pick the wrong wheel for the steel or stainless steel area.
• Calculate cost per job, not per wheel. DAVITA recommends a trial run that compares the number of cuts per wheel on the same material. This is the most accurate way to measure real cost.
• Clear safety documentation. The oSa mark and the EN 12413 and ANSI B7.1 markings printed on the wheel give the HSE department a basis to approve the consumable and help meet customer or project owner requirements during plant audits.
• Complete documents. Each delivery comes with an invoice, certificate of origin (CO), certificate of quality (CQ) and user manual.
• Reliable supply from an authorised distributor. DAVITA restocks regularly and delivers fast, so the plant can keep its consumables inventory low.

2.2 Benefits for operators

• No need to stop and change wheels when switching materials. The wheel cuts both carbon steel and stainless steel. On structures that combine both materials, operators keep cutting with one wheel without stopping the machine to change it.
• Thick, rigid wheel for heavy sections. The 2.4 mm thickness and fibreglass reinforcement (BF marking) keep the wheel stable when cutting solid bar, shafts, box sections and thick-walled tubes.
• Peace of mind at work. The wheel meets EN 12413 safety requirements and carries the oSa mark. Combined with a wheel guard and proper personal protective equipment, operators work more safely.
• Fits common 125 mm angle grinders. The 22.23 mm bore is the standard size. It fits most 125 mm angle grinders, including the Milwaukee cordless angle grinders distributed by DAVITA.

3. Technical specifications

4. Choosing the right thickness

If you are unsure which one to choose, contact the DAVITA technical team for advice based on your material and machine.

5. Typical applications and usage notes

5.1 Applications

• Cutting steel tubes, box sections, profiles and small shafts.
• Cutting stainless steel sheet, tube and bar in stainless steel fabrication shops.
• Mechanical fabrication, repair and maintenance in plants, steel structures and shipbuilding.

5.2 Usage notes

• Use only on machines rated no higher than 12,250 r/min.
• Always use the machine's wheel guard. Wear eye or face protection, a dust mask, ear protection and gloves, as shown by the pictograms on the label.
• Do not use the cut-off wheel for grinding and do not apply side pressure. Cut straight, without tilting the wheel in the cut.
• Before mounting, check that the wheel is free of cracks and chips, and is not damp or oily. Run it without load for about 30 seconds.
• Store in a dry place. Use the wheel before the expiry date stamped on the metal ring at the bore (EXP marking).

6. Buy from DAVITA

• Supply: Fastest delivery in Vietnam - full invoice, certificates and user manual, with support from the DAVITA technical team
• DAVITA ENGINEERING JSC is the authorised distributor of PFERD in Vietnam. Order directly on davita.vn or contact the DAVITA technical team for help choosing the right wheel.
