Vòng bi FAG 61926-M
1Vòng bi cầu FAG dòng chiều cao mỏng
Mã hàng: 61926-M
61926-M - FAG Thin Section
Dimension: 130x180x24mm
SKU:
N/A
Danh mục:
Là danh mục hàng kinh doanh của Công ty Cổ phần Kỹ thuật DAVITA với chất lượng tốt nhất trong cùng phân khúc

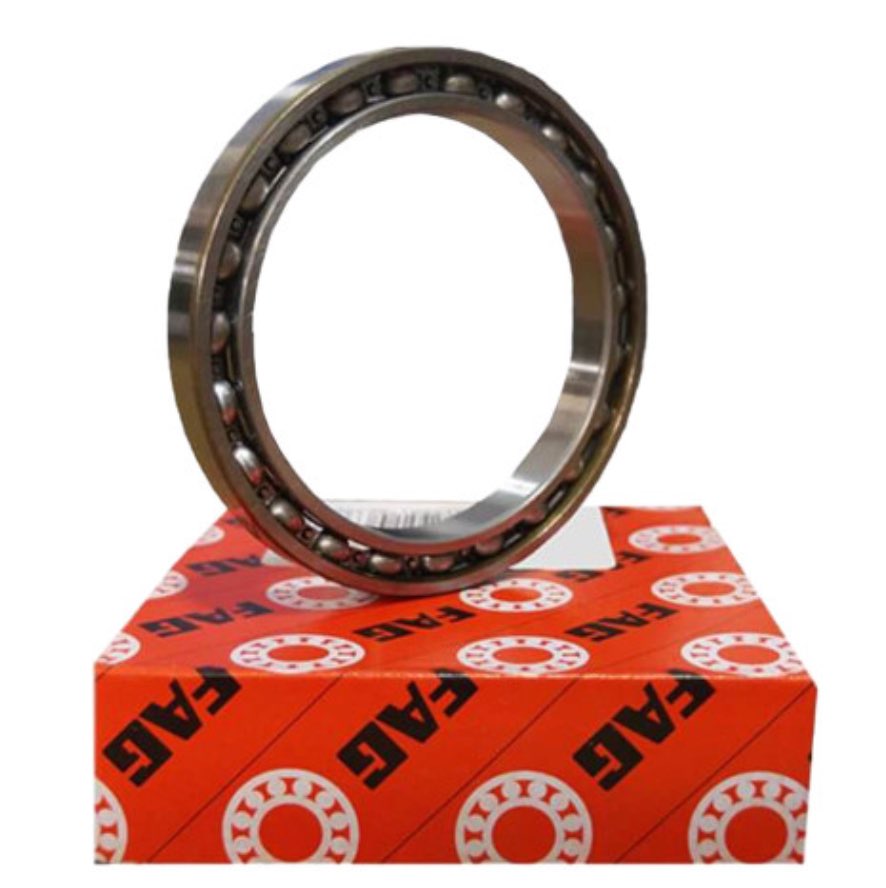

This 61926-M bearing is a Open Type Thin Section Deep Groove Radial Ball Bearing with a standard radial internal clearance.The bearing's dimensions are 130x180x24mm
| 619 | 26 | SHIELDS | M | |
|---|---|---|---|---|
| Very Thin Section | 130mm - Bore Size | Open Type | Brass Cage | Normal Internal Clearance |
Product Information
BRAND:
Order Code: 61926-M-FAG
CONDITION:NEW
AVAILABILITY: IN STOCK 2PCS
WEIGHT: 1.91 KGS
Technical Data
INSIDE DIAMETER (MM):130MMOUTSIDE DIAMETER (MM):180MM
WIDTH (MM): 24MM
CAGE TYPE: BRASS
SEALS OR SHIELDS: OPEN TYPE, NON-SHIELDS
CLEARANCE: STANDARD
DYNAMIC LOAD RATING (KN): 77
STATIC LOAD RATING (KN): 74
FATIGUE LOAD RATING (KN): 3.2
REFERENCE SPEED RATING (R/MIN): 6400
LIMITING SPEED RATING (R/MIN): 3900
